LinearMCore UDP

The LinearMCore UDP is used to create the mover core and the armature winding for linear motors. It can also create a coil terminal for current assignment.

Property	Description
WidthCore	Core width in motion direction
ThickCore	Core thickness
Length	Core length
SlotPitch	The distance between two slots
Slots	Number of slots
SlotType	Slot type: 1 to 7
Hs0	Slot opening height
Hs1	Slot wedge height
Hs2	Slot body height
Bs0	Slot opening width
Bs1	Slot wedge maximum width
Bs2	Slot body bottom width, 0 for parallel teeth
Rs	Slot body bottom fillet
Layers	Number of winding layers
CoilPitch	Coil pitch measured in slots
EndExt	One-side end extended length
SpanExt	Axial length of end span; 0 for no span
SegAngle	Deviation angle for slot arches (10~30, <10 for true surface)
InfoCore	0: core only; 1: core & all coils; 2: one coil only

Note:

For parameters such as SegAngle and parameters related to slots, refer to SlotCore UDP parameters.
The InfoCore values of the following two figures are both 1 to better describe other parameters such as EndExt and SpanExt

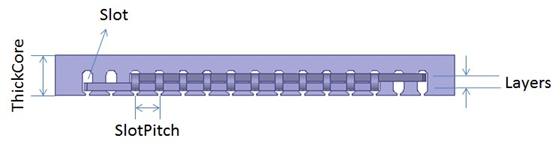

Parameters of LinearMCore in x-y plane (InfoCore set to 1)

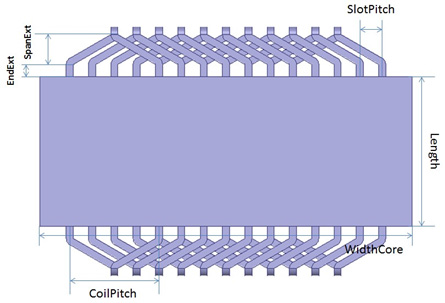

Parameters of LinearMCore in axial direction (InfoCore set to 1)
