LapCoil UDP

The LapCoil UDP is used to create a coil for lap-type distributed AC windings or lap-type DC commutating windings in a slotted core created by the SlotCore or VentSlotCore UDP. This UDP can also create a coil cross-section used as a terminal for current assignment.

Property	Description
DiaGap	Core diameter on gap side, DiaGap < DiaYoke for outer cores.
DiaYoke	Core diameter on yoke side, DiaYoke < DiaGap for inner cores.
Length	Core length.
Skew	Skew angle in core length range.
Slots	Number of slots.
SlotType	Slot Type: 1 to 7.
Hs0	Slot opening height.
Hs1	Slot wedge height.
Hs2	Slot body height.
Bs0	Slot opening width.
Bs1	Slot wedge maximum width.
Bs2	Slot body bottom width, 0 for parallel teeth.
Rs	Slot body bottom fillet.
FilletType	0: a quarter circle; 1: a tangent connection; 2&3: arc bottom; 4&5: V bottom.
Layers	Number of winding layers.
CoilPitch	Coil pitch measured in slots.
EndExt	One-side end extended length.
SpanExt	Axial length of end span; 0 for no span.
BendAngle	Bending angle viewed in the rz plane.
SegAngle	Deviation angle for slot arches (5~15, <5 for true surface).
LenRegion	Region length.
InfoCoil	0: winding; 1: coil; 2 terminal1; 3: terminal2; 4:insulation; 100: region.

A single coil is much easier to be described with a slot core as reference. In the following figures, coils are in gray and slot cores are orange. The lap coil’s InfoCoil property is set to 1 to use a single coil to show parameters of lap coil.

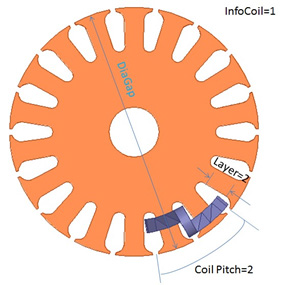

This first figure shows a Single Lap Coil with Coil Pitch set to 2:

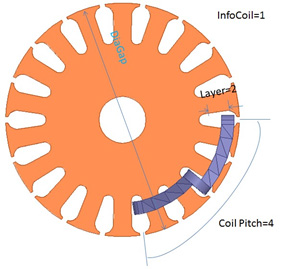

This next figure shows a Single Lap Coil with Coil Pitch set to 4:

Axial Single Lap Coil with Coil Pitch set to 4:

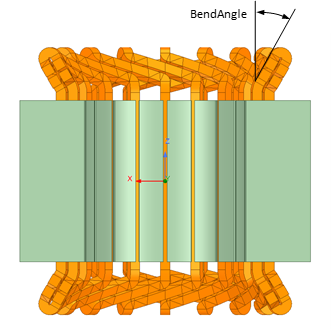

Below is an axial view of an outer core winding with bended end coil. The lap coil’s InfoCoil property is set to 0.
