IPMCore UDP
The IPMCore UDP is used to create an IPM core and a PM for IPM synchronous machines or IPM brushless DC motors.
|
Property |
Description |
|
DiaGap |
Core diameter on gap side, or outer diameter. |
|
DiaYoke |
Core diameter on yoke side, or inner diameter. |
|
Length |
Core length. |
|
Poles |
Number of poles. |
|
PoleType |
Pole type: 1 to 6. |
|
D1 |
Limited diameter of PM ducts. |
|
O1 |
Bottom width for separate or flat-bottom duct (for types 3~6). |
|
O2 |
Distance from duct bottom to shaft surface (for types 2~6). |
|
B1 |
Duct thickness. |
|
Rib |
Rib width. |
|
HRib |
Rib height (for types 3~5). |
|
DminMag |
Minimum distance between side magnets (for types 3~5). |
|
ThickMag |
Magnet thickness. |
|
WidthMag |
Total width of all magnet per pole. |
|
LenRegion |
Region length. |
|
InfoCore |
0: core; 1: magnets; 2: ducts; 3: one-pole magnet; 100: region. |

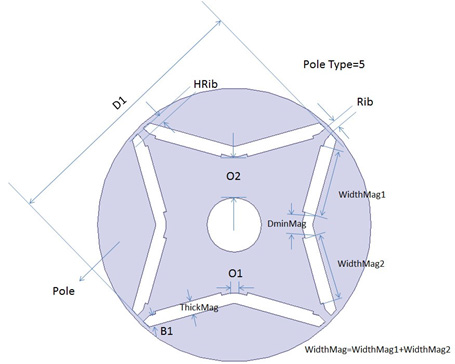

Most parameters of IPMCore UDP are shown in the following figure except those common parameters like DiaGap, DiaYoke and Length.
Parameters of IPM Core
