Exporting a Field Plot Marker Table

You can export a field plot marker table to either a comma- or tab-delimited file as follows:

1. On the main menu click Maxwell 3D or Maxwell 2D and then select Fields > Fields > Marker > Export Marker Table.

Alternatively you can right-click anywhere in the modeler window, or on the Field Overlays folder icon in the Project Manager, and select Fields > Marker > Export Marker Table.

2. In the Export As dialog box, choose the export format, either .csv or .tab, and save the file in the desired location.

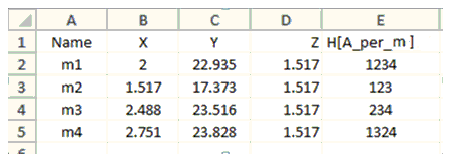

The exported file can then be imported into another application such as a spreadsheet.
