Exporting Variables for Documentation

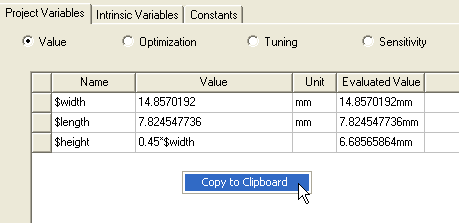

By right-clicking in the Project Variables window, you can copy a list of variables and their values to the clipboard. You can then paste these variables elsewhere.
The pasted variables appear in a tab separated column format. Fields that do not contain values are left blank.:
|
Name |
Value |
Unit |
"Evaluated Value |
"Description |
Read-only |
Hidden |
|
$width |
14.8570192 |
mm |
14.8570192mm |
|
false |
false |
|
$length |
7.824547736 |
mm |
7.824547736mm |
|
false |
false |
|
$height |
0.45*$width |
|
6.68565864mm |
|
false |
false |
