Exporting Animations

  1. Create the animation you want to export.

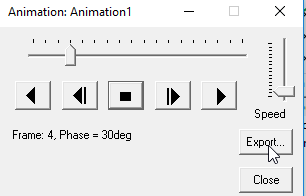

  2. In the play panel, click Export.

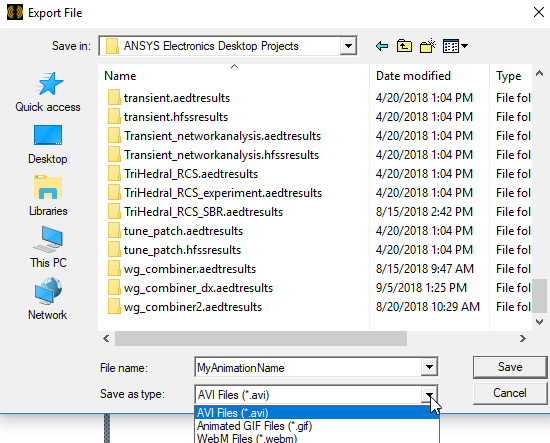

    3. The Export File dialog box appears.

  3. Specify the directory to Save in, the File name and use the Save as type drop down men to select Animated GIF File (.gif) or AVI File (.avi) or WebM File (.webm).

    4. The Animation Options dialog box appears.

  4. To replace colors in the file with 256 shades of gray, select Grayscale.

    5. Grayscale animations tend to use less memory than full color animations.

  5. For AVI format export, specify the Compression factor(the default is 85) and one of the following Compression types:

    INTEL Indeo



    Cinepak



    Microsoft Video 1



    None




  6. For GIF format export, specify the number of loops. The default "0" denotes infinite loops.
  7. Click OK to close the Animations Options dialog box.

The animation is exported to the file format you specified.
