DoubleCage UDP

The DoubleCage UDP is used to create a double squirrel-cage winding in a slotted core created by the SlotCore UDP or VentSlotCore UDP for induction machines with a double squirrel-cage rotor. The created double squirrel-cage winding can also be used as a subtract tool to derive a core with top and bottom slots.

Property	Description
DiaGap	Core diameter on gap side, DiaGap < DiaYoke for outer cores.
DiaYoke	Core diameter on yoke side, DiaYoke < DiaGap for inner cores.
Length	Core length.
Skew	Skew angle in core length range.
Slots	Number of slots.
SlotType	Slot Type: 1 to 7.
Hs0	Slot opening height.
Hs01	Slot closed bridge height.
Hs1	Slot wedge height.
Hs2	Slot body height.
Bs0	Slot opening width.
Bs1	Slot wedge maximum width.
Bs2	Slot body bottom width, 0 for parallel teeth.
Rs	Slot body bottom fillet.
FilletType	0: a quarter circle; 1: a tangent connection.
HalfSlot	0: symmetric slots; 1: half slots.
BarEndExt	One-side bar end extended Length.
RingLength	One-side axial ring length.
RingHeight	Radial ring height.
RingDiaGap	Ring diameter on gap side.
DoubleCage	0: normal squirrel cage; 1: double squirrel cage.
BSlotType	Bottom slot type: 1 to 4.
BHs0	Slot opening height.
BHs1	Slot wedge height.
BHs2	Slot body height.
BBs0	Slot opening width.
BBs1	Slot wedge maximum width.
BBs2	Slot body bottom width, 0 for parallel teeth.
BRs	Slot body bottom fillet.
CastRotor	0: insert-bar; 1: cast-rotor.
SegAngle	Deviation angle for slot arches (10~30, <10 for true surface).
LenRegion	Region length.
InfoCoil	0: bars & rings; 1: bars; 2: rings; 100: region.

The main difference between double cage and squirrel cage is that a double cage has double slots instead of single slots. The following 2D figure shows the bottom slot, which is connected to the normal slot. The parameters for a bottom slot are similar to those of a normal slot. Other parameters are exactly the same as a squirrel cage.

Note: For parameters such as Skew, FilletType, SegAngle and parameters related to slots, refer to SlotCore UDP parameters.

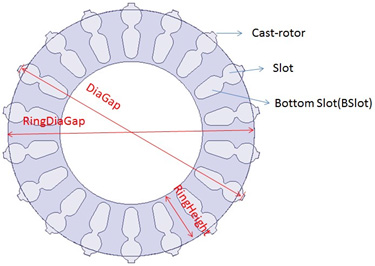

Parameters of double cage on cross-section:

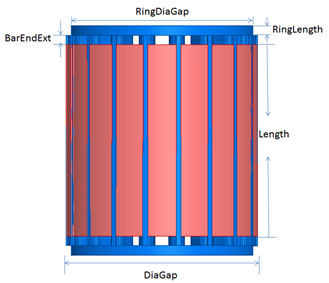

Parameters of double cage on axial direction:
