DiskSlotCore UDP
The DiskSlotCore UDP is used to create a stator/rotor core for axial-flux machines. It can also create a squirrel-cage winding of the axial-flux type.
|
Property |
Description |
|
DiaOuter |
Core outer diameter. |
|
DiaInner |
Core inner diameter. |
|
Thickness |
Core axial thickness per side. |
|
Gap |
Gap between core & xy plane (>0: upper; <0: lower; =0: double-sided). |
|
Skew |
Skew angle. |
|
Slots |
Number of slots. |
|
SlotType |
Slot type: 1 to 6. |
|
Hs0 |
Slot opening height. |
|
Hs01 |
Slot closed bridge height. |
|
Hs1 |
Slot wedge height. |
|
Hs2 |
Slot body height. |
|
Bs0 |
Slot opening width. |
|
Bs1 |
Slot wedge maximum width. |
|
Bs2 |
Slot body bottom width, 0 for parallel teeth. |
|
Rs |
Slot body bottom fillet. |
|
FilletType |
0: a quarter circle; 1: tangent connection. |
|
HalfSlot |
0: symmetric slots; 1: half slots. |
|
RingLength |
One-side radial ring length. |
|
RingHeight |
Axial ring height. |
|
SegAngle |
Deviation angle for slot arches (10~30, <10 for true surface). |
|
InfoCore |
0: core only; 1: squirrel cage only. |
These parameters are used in the following figures.
- For parameters such as Skew, FilletType, SegAngle, HalfSlot and parameters related to slots, refer to SlotCore UDP parameters.
- Figures are shown in pairs to compare parameters when the InfoCore value varies

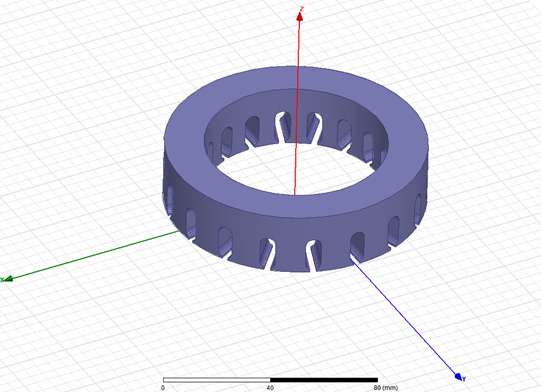

Overview of DiskSlotCore (InfoCore set to 0)

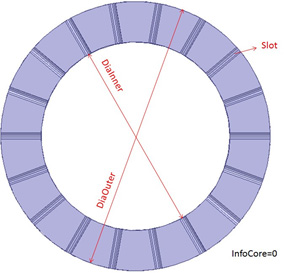

DiskSlot Core (InfoCore set to 0)

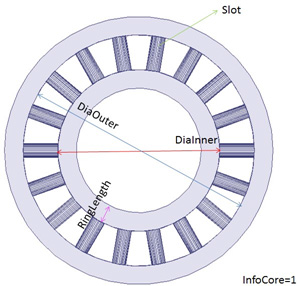

DiskSlot Core (InfoCore set to 1)

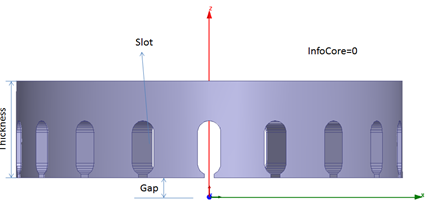

3D DiskSlot Core (InfoCore set to 0)

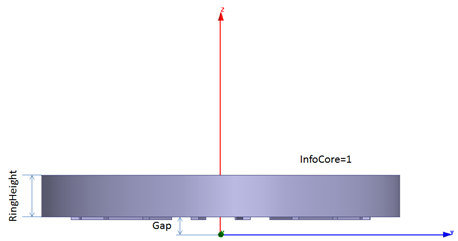

3D DiskSlot Core (InfoCore set to 1)
