DiskPMCore UDP
The DiskPMCore UDP is used to create a PM core of the axial-flux type for axial-flux PM machines.
|
Property |
Description |
|
DiaOuter |
Core outer diameter. |
|
DiaInner |
Core inner diameter. |
|
Thickness |
Core axial thickness per side. |
|
Gap |
Gap between core & xy plane (>0: upper; <0: lower; =0: double-sided). |
|
Skew |
Skew angle. |
|
Poles |
Number of poles. |
|
Embrace |
Pole embrace. |
|
ThickMag |
Magnet axial thickness per side. |
|
InfoCore |
0: core only; 1: all PMs; 2: one PM only. |
Note: There are two
objects in each of the following figures. Both objects in each figure
are DiskPMCore. The value of InfoCore of one DiskPMCore is 1 (red
object), the other is 0 (gray object).

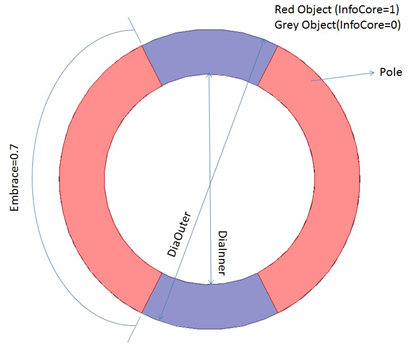

DiskPM core parameters on x-y plane

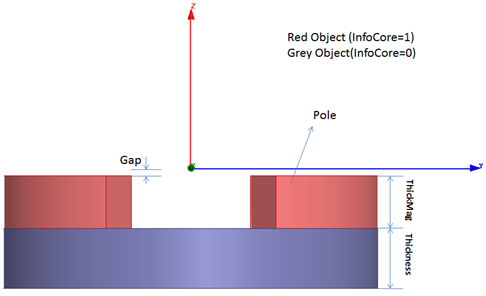

DiskPM core parameters in axial direction
