DiskCoil UDP
The DiskCoil UDP is used to create a lap-type coil in an axial-flux slotted core created by the DiskSlotCore UDP for axial-flux machines. It can also create a coil terminal for current assignment.
|
Property |
Description |
|
DiaOuter |
Core outer diameter. |
|
DiaInner |
Core inner diameter. |
|
Thickness |
Core axial thickness per side. |
|
Gap |
Gap between core & xy plane (>0: upper; <0: lower; =0: double-sided). |
|
Skew |
Skew angle. |
|
Slots |
Number of slots. |
|
SlotType |
Slot type: 1 to 7. |
|
Hs0 |
Slot opening height. |
|
Hs1 |
Slot wedge height. |
|
Hs2 |
Slot body height. |
|
Bs0 |
Slot opening width. |
|
Bs1 |
Slot wedge maximum width. |
|
Bs2 |
Slot body bottom width, 0 for parallel teeth. |
|
Rs |
Slot body bottom fillet. |
|
FilletType |
0: a quarter circle; 1: tangent connection. |
|
Layers |
Number of winding layers. |
|
CoilPitch |
Coil pitch measured in slots. |
|
EndExt |
One-side radial end extended length. |
|
EndClr |
Clearance between two end spans; 0 for no span. |
|
SegAngle |
Deviation angle for end span (5~15, <5 for true surface). |
|
InfoCoil |
0: winding; 1: coil; 2: terminal. |
- For parameters such as Skew, FilletType, SegAngle, HalfSlot and parameters related to slots, refer to SlotCore UDP parameters.
- One disk coil (InfoCore set to 1) can be used in comparison to All disk coils (InfoCore set to 0) to show CoilPitch parameter.
- A DiskSlot core is used as reference in EndExt and EndClr parameters (InfoCore set to 0)to show EndExt and EndClr parameters.

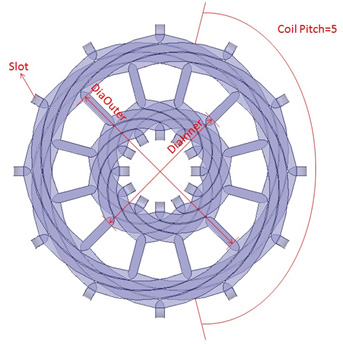

All disk coils (InfoCore set to 0)

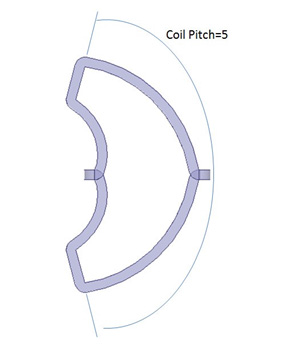

One disk coil (InfoCore set to 1)

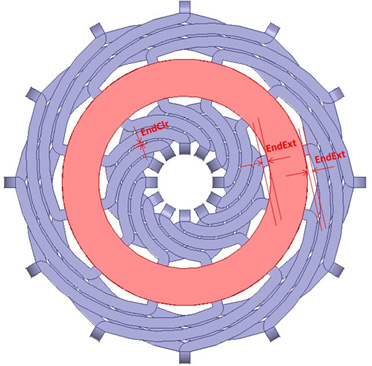

EndExt and EndClr parameters (InfoCore set to 0)

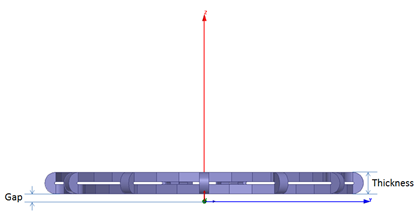

Gap and Thickness parameters (InfoCore set to 0)
