CupCoil UDP
The CupCoil UDP is used to create a coil for distributed slotless AC windings or coreless DC commutating windings in the air-gap between outer and inner cores. This UDP can also create a coil cross-section, which can be used as a terminal for current assignment.
|
Property |
Description |
|
DiaOuter |
Coil outer diameter |
|
DiaInner |
Coil inner diameter |
|
Length |
Length of coil straight part |
|
Coils |
Number of total coils in a circle |
| CoilType |
1: lap; 2: wave |
| CoilPitch |
Coil pitch in degrees |
| LenTotal |
Tip-to-tip length of a coil, 0 for 2D |
| LenRegion |
Region length |
| InfoCoil |
0: coils; 1: coil; 2 terminal1; 3: terminal2; 100: region |

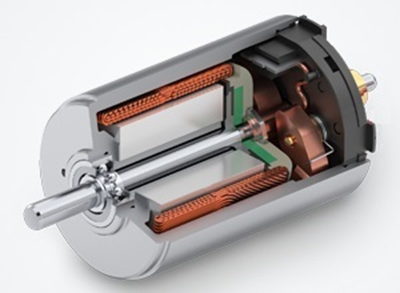

Coreless DC motor
Coreless DC Winding

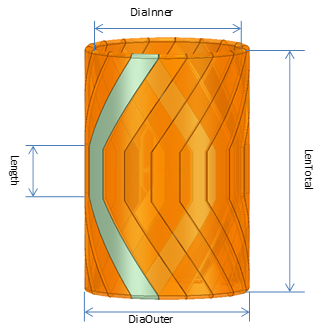

The following figure shows some of the parameters described in the table above. To avoid too small a mesh size, wire turns are not created one-by-one as solid conductors. Instead, all adjacent wires carrying the same current are grouped as a strand coil with one or more turns.
A coreless lap-type DC winding created by CupCoil UDP
