ConCoil UDP
The ConCoil UDP is used to create a coil for concentric distributed AC windings or concentric DC field windings in a slotted core created by the SlotCore, VentSlotCore, RacetrackSlotCore, or NonSalientPoleCore UDP. This UDP can also create a coil cross-section used as a terminal for current assignment.
|
Property |
Description |
|
DiaGap |
Core diameter on gap side, DiaGap < DiaYoke for outer cores. |
|
DiaYoke |
Core diameter on yoke side, DiaYoke < DiaGap for inner cores. |
|
Length |
Core length. |
|
Skew |
Skew angle in core length range. |
|
Slots |
Number of slots. |
|
SlotType |
Slot Type: 1 to 7. |
|
Hs0 |
Slot opening height. |
|
Hs1 |
Slot wedge height. |
|
Hs2 |
Slot body height. |
|
Bs0 |
Slot opening width. |
|
Bs1 |
Slot wedge maximum width. |
|
Bs2 |
Slot body bottom width, 0 for parallel teeth. |
|
Rs |
Slot body bottom fillet. |
|
FilletType |
0: a quarter circle; 1: a tangent connection. |
|
LayerLoc |
0: whole; 1: middle; 2: top; 3: bottom. |
|
CoilPitch |
Coil pitch measured in slots. |
|
EndExt |
One-side end extended length. |
|
LayerExt |
Span layer extension in the axial direction. |
|
LayerDiff |
Span layer difference in the radial direction. |
|
AltEnd |
0: same end layers; 1: alternate end layers. |
|
LenRegion |
Region length. |
|
InfoCoil |
0: coil; 1 terminal1; 2: terminal2; 100: region. |

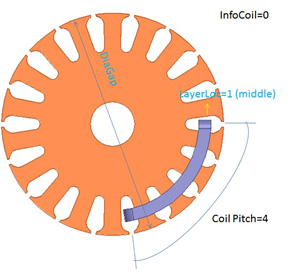

The following four 2D figures show the parameter LayerLoc with different values. Slot cores are used as references to help better understand concoils.

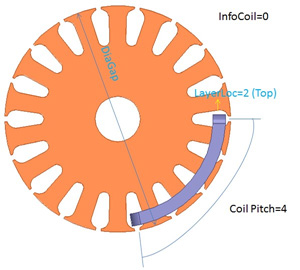

LayerLoc set to 2:

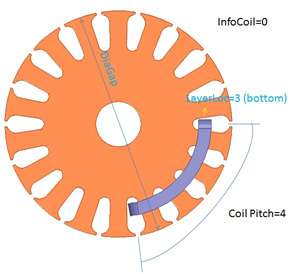

LayerLoc set to 3:

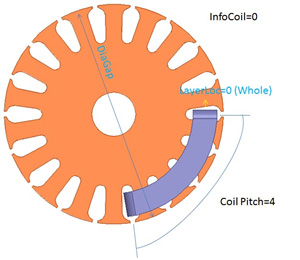

LayerLoc set to 0:

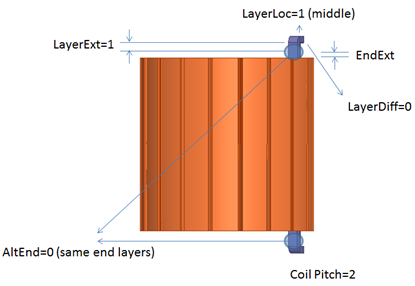

The following four 3D figures illustrate parameters of ConCoil such as LayerExt, LayerDiff and AltEnd.

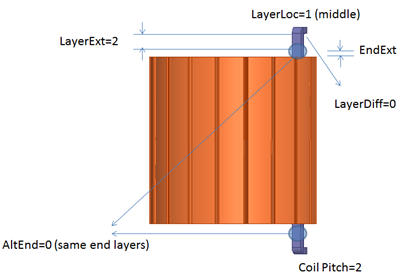

3D ConCoil with a different
LayerExt than shown in reference concoil:

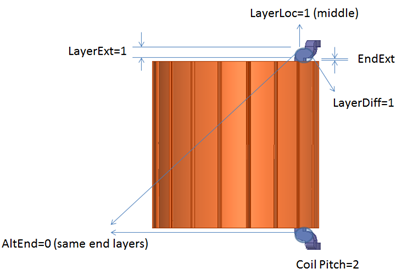

3D ConCoil with a different LayerDiff than
shown in reference concoil:

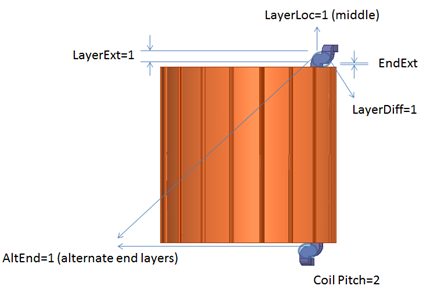

3D ConCoil with a different AltEnd than shown
in previous figure3D ConCoil with a different LayerDiff than
shown in reference concoil:
