Band UDP

The Band UDP is used to create

• a region to include all moving objects, which is called a “band”
• an outer region to include all moving and static objects
• a region used as a subtract tool to derive a partial model
• independent and dependent boundaries


  Property	Description
  DiaGap	Band diameter in gap center, DiaGap < DiaYoke for outer band
  DiaYoke	Band diameter on yoke side, DiaYoke < DiaGap for inner band
  Length	Band Length
  SegAngle	Angle per segment of band (0.1 ~ 5 degrees)
  Fractions	Number of circumferential fractions, 1 for circular region
  HalfAxial	0: full model; 1: half model in axial direction.
  InfoCore	0: band; 1: tool; 2: independent; 3: dependent; 100: region




These parameters are used in the following 2D inner band and 2D outer band examples:

Inner band:

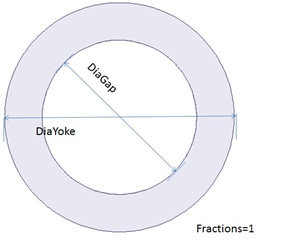

Outer band:

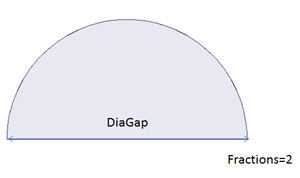

Inner band half:

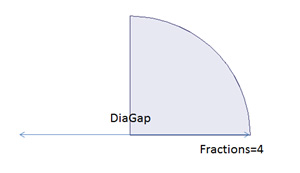

Inner band semi:

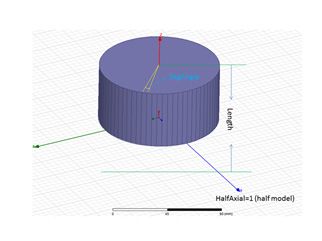

Parameters such as SegAngle, Length and HalfAxial are shown in the following 3D figures:

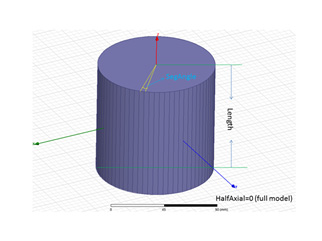

Inner band (full model):
