Solving a Single Setup

To run a single setup:

1. Select a solution setup in the Project Manager.

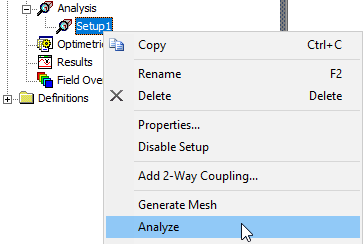

2. Right-click and select Analyze from the shortcut menu. The graphic shows a single setup selected for analysis.



The 3D field solution is computed inside the structure for a solution. For a select sweep, it is computed for the sweep variables.

When you right-click a Setup the shortcut menu also includes the Submit Job... command.



For more information on the Submit Job... command see, Distributed Analysis and High Performance Computing (HPC) Integration.

To run more than one analysis at a time, follow the same procedure while a simulation is running. If you have enabled queuing, the next solution setup will be solved when the previous solution is complete.
