Snapping
Snapping provides multiple ways to reposition geometry objects, faces, and edges.

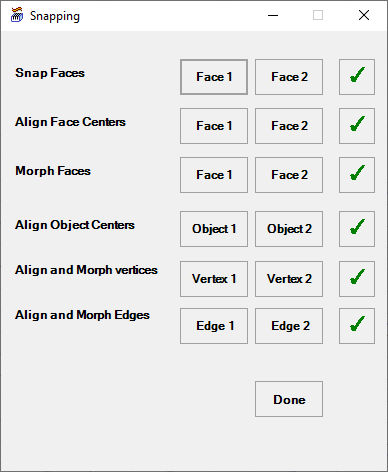

| Snap Faces | Face 1 is aligned with Face 2. |
| Align Face Centers | Face 1 center is aligned with Face 2. |
| Morph Faces | Face 1 is morphed to match the size of Face 2. |
| Align Object Centers | Object 1 center is aligned with Object 2 center. |
| Align and Morph Vertices | Vertex 1 is aligned with and morphed to match the size of Vertex 2. |
| Align and Morph Edges | Edge 1 is aligned with and morphed to match the size of Edge 2. |
| Done |
Click Done to close the toolkit. |

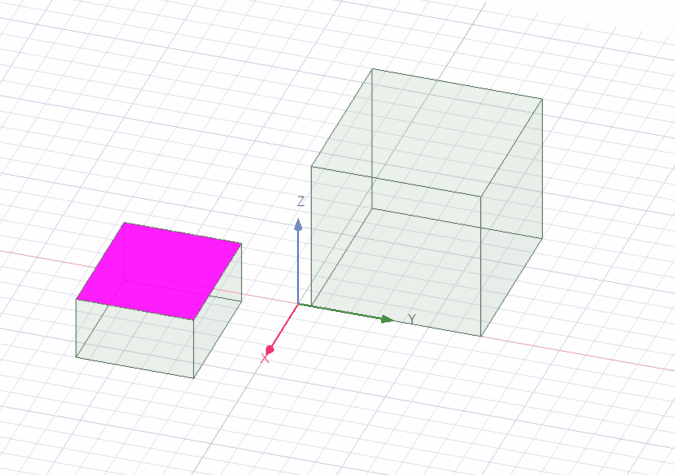

Snap Faces

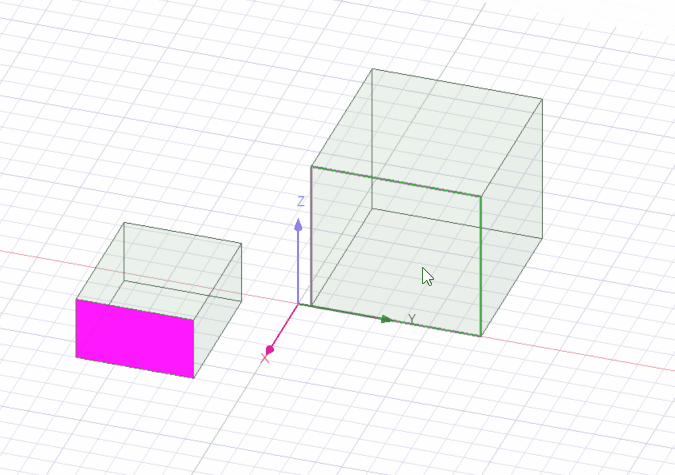

Align Face Centers

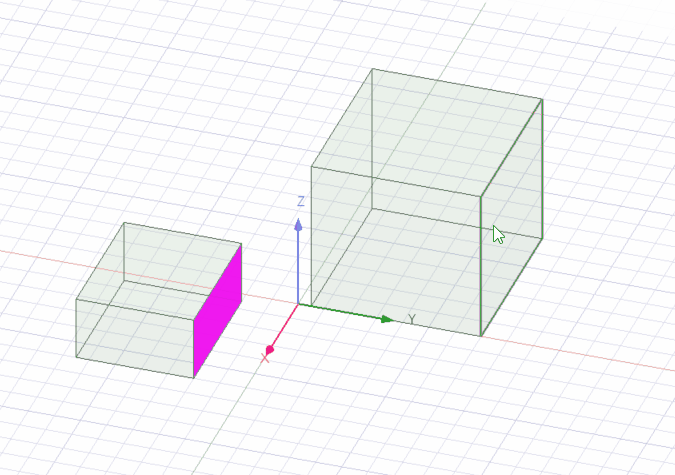

Morph Faces
Align Object Centers

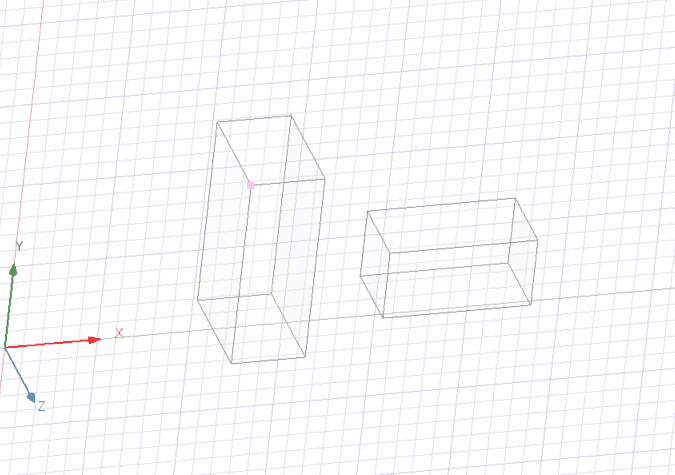

Align and Morph Vertices

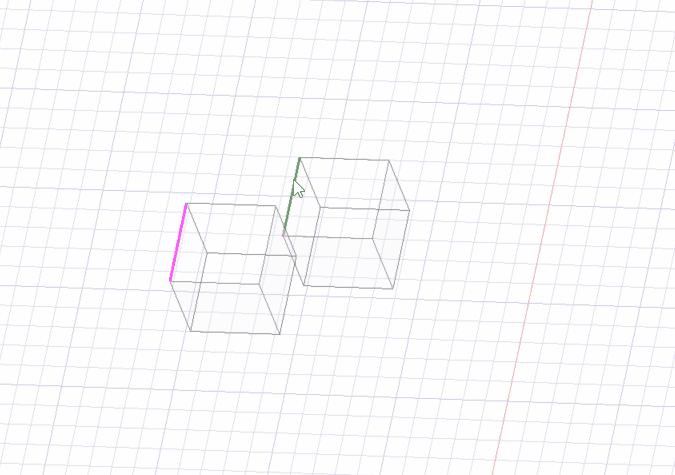

Align and Morph Edges
