Packages - SOT

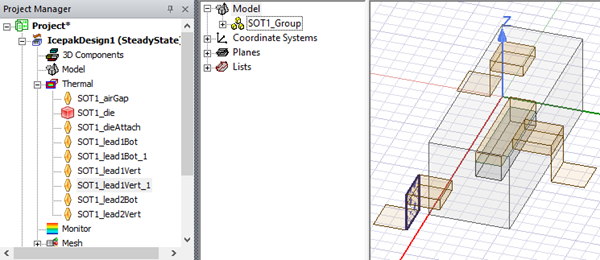

SOT enables you to create geometry and boundary conditions to represent an plastic encapsulated small outline transistor.

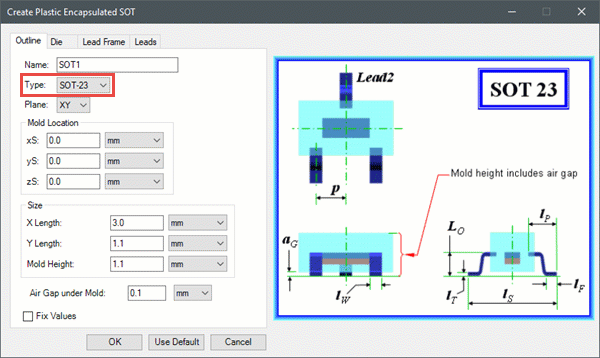

Use the navigation arrows on the image below to view each tab.
| Name | The Name appears in the Project Manager window, history tree, and 3D Modeler window. |
| Type | Type specifies whether the package is type SOT-23, SOT-223, or SOT-89. |
| Plane | Plane specifies the plane on which to create the package. |
| Mold Location | Under Location, specify the starting coordinates for the mold geometry relative to center of the 3D Modeler. |
| Size | Under Size, specify the length of the package in each coordinate direction. The coordinate direction represented by Mold Height depends on the selected Plane. |
| Air Gap under Mold | Air Gap under Mold specifies the airgap under the mold. |

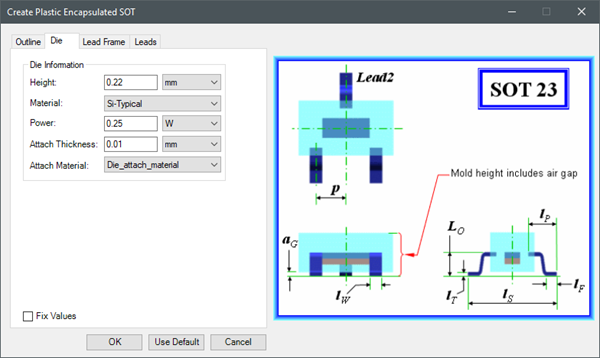

| Die Information | Under Die Information, specify the die height, material, and power. Also, specify the thickness and material of the die attach. |

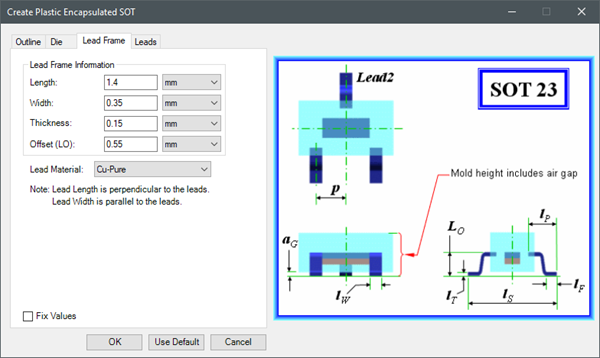

| Lead Frame Information | Under Lead Frame Information, specify the lead frame length, width, thickness, and offset. |
| Lead Material | Lead Material specifies the material of the leads. |

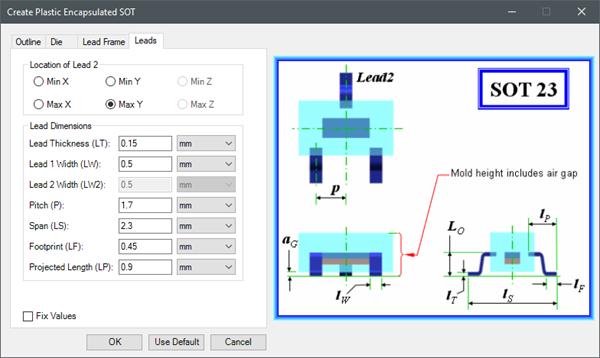

| Location of Lead 2 | Under Location of Lead 2, specify the coordinate direction for the location of lead 2. |
| Lead Dimensions | Under Lead Dimensions, specify the lead thickness, widths, pitch, span, footprint, and projected length. |
Iron Python Script – SOT.py:
The following is the toolkit's scripting information.
scriptInput = ["ng"]
scriptInput.append("Name:SOT1")
scriptInput.append("Type:SOT-23")
scriptInput.append("Plane:XY")
scriptInput.append("length_unit:meter")
scriptInput.append("power_unit:W")
scriptInput.append("xS:0.0")
scriptInput.append("yS:0.0")
scriptInput.append("zS:0.0")
scriptInput.append("Len1:0.003")
scriptInput.append("Len2:0.0011")
scriptInput.append("Thick:0.0011")
scriptInput.append("airGap:0.0001")
scriptInput.append("dieHeight:0.00022")
scriptInput.append("DieMaterial:Si-Typical")
scriptInput.append("attachThick:0.00001")
scriptInput.append("AttachMaterial:Die_attach_material")
scriptInput.append("DiePower:1.0")
scriptInput.append("FrameLength:0.0014")
scriptInput.append("FrameWidth:0.00035")
scriptInput.append("FrameThick: 0.00015")
scriptInput.append("FrameOffset:0.00055")
scriptInput.append("Lead2Axis:Min Y")
scriptInput.append("LeadThick:0.00015")
scriptInput.append("Lead1Width:0.0005")
scriptInput.append("Lead2Width:0.0005")
scriptInput.append("LeadPitch:0.0017")
scriptInput.append("LeadSpan:0.0023")
scriptInput.append("LeadFootprint:0.00045")
scriptInput.append("LeadProjected:0.0009")
scriptInput.append("LeadMaterial:Cu-Pure")
oDesign.RunToolkit("SysLib", "Geometry/Packages/SOT", [])
oDesign.RunToolkit("SysLib", "Geometry/Packages/SOT", ["ng"])
oDesign.RunToolkit("SysLib", "Geometry/Packages/SOT", scriptInput)
