Packages - SDBGA

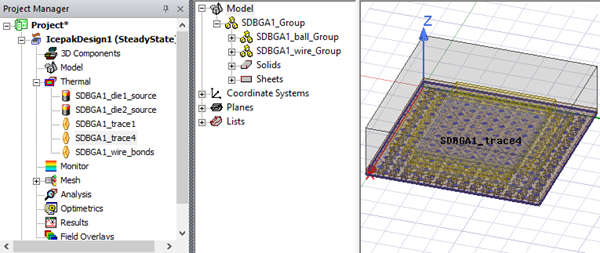

SDBGA enables you to create geometry and boundary conditions to represent an stacked die ball grid array package.

Name	The Name appears in the Project Manager window, history tree, and 3D Modeler window.
Plane	Plane specifies the plane on which to create the package.

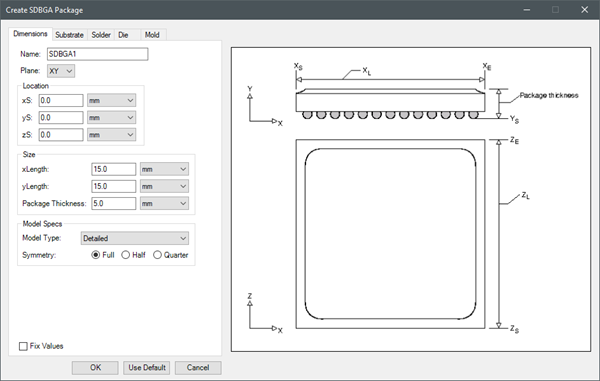

Location	Under Location, specify the starting coordinates for the package geometry relative to center of the 3D Modeler.
Size	Under Size, specify the length of the package in each coordinate direction. The coordinate direction represented by Package Thickness depends on the selected Plane.
Model Specs	Under Model Specs, specify the Model Type as Detailed or Compact Conduction Model (CCM) and select a Symmetry.

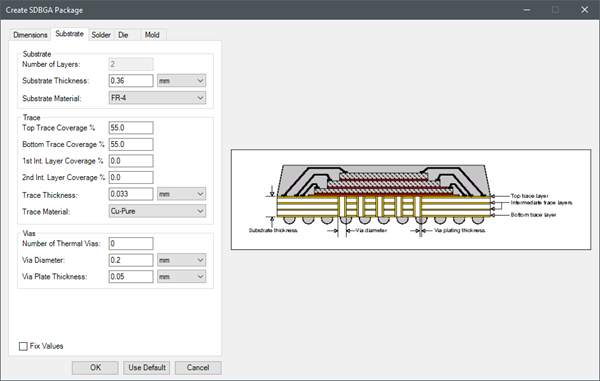

Substrate	Under Substrate, specify the Number of Layers, Substrate Thickness, and Substrate Material.
Trace	Under Trace, specify the coverage percentage for the top trace, bottom trace, first internal layer, and second internal layer. Also specify the Trace Thickness and Trace Material.
Vias	Under Vias, specify the number of vias and via diameter and thickness.

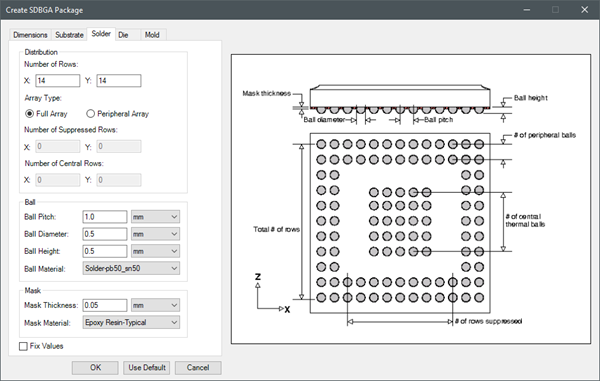

Distribution	Under Distribution, enter the number of rows for solder balls, the Array Type. For a Peripheral Array, specify the number of rows to be suppressed and number of central rows.
Ball	Under Ball, specify the dimensions of the solder balls, including pitch, diameter, and height. Also, specify the material for the solder balls.
Mask	Under Mask, enter the solder ball mask thickness and material.

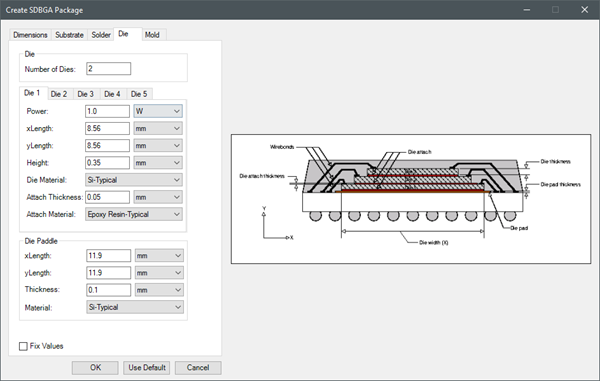

Die	Under Die, specify the number of dies on the package. You can specify up to five dies.
Die 1-5	On the Die tab(s), specify the die power, the length of the die in each coordinate direction, and die material. The coordinate direction represented by Height depends on the selected Plane. Also, specify the thickness and material of the die attach.
Die Paddle	Under Die Paddle, specify the length of the die paddle in each coordinate direction. The coordinate direction represented by Thickness depends on the selected Plane. Also, specify the die paddle material.

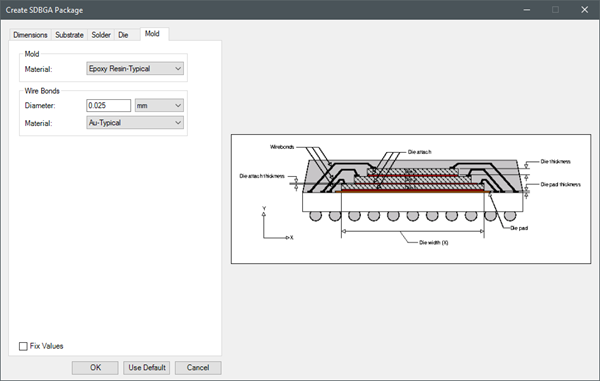

Mold	Under Mold, select the material for the mold.
Wire Bonds	Under Wire Bonds, specify the diameter and material of the of the wire bonds.

Iron Python Script – SDBGA.py:

The following is the toolkit's scripting information.

data = ["ng",

'length_unit:meter',

'power_unit:W',

'Plane:XY',

'xS:0.0',

'yS:0.0',

'zS:0.0',

'Length1:0.015',

'Length2:0.015',

'Package Thickness:0.005',

'Model Type:Detailed',

'Symmetry:Full',

'Substrate Thickness:0.00036',

'Substrate Material:FR-4',

'Top Trace:55.0',

'Bottom Trace:55.0',

'1st Int. Layer Coverage:0.0',

'2nd Int. Layer Coverage:0.0',

'Trace Thickness:0.000033',

'Trace Material:Cu-Pure',

'Number of Thermal Vias:0',

'Via Diameter:0.0002',

'Via Plate Thickness:0.00005',

'Number of Rows 1:14',

'Number of Rows 2:14',

'Array Type:Full Array',

'Suppressed Rows 1:0',

'Suppressed Rows 2:0',

'Central Rows 1:0',

'Central Rows 2:0',

'Ball Pitch:0.001',

'Ball Diameter:0.0005',

'Ball Height:0.0005',

'Ball Material:Solder-pb50_sn50',

'Mask Thickness:0.00005',

'Mask Material:Epoxy Resin-Typical',

'Number of Dies:2',

'Die 1 Length1:0.00856',

'Die 1 Length2:0.00856',

'Die 1 Height:.00035',

'Die 1 Power:1',

'Die 1 Material:Si-Typical',

'Attach 1 Thickness:0.00005',

'Attach 1 Material:Epoxy Resin-Typical',

'Die 2 Length1:0.00856',

'Die 2 Length2:0.00856',

'Die 2 Height:.00035',

'Die 2 Power:1',

'Die 2 Material:Si-Typical',

'Attach 2 Thickness:0.00005',

'Attach 2 Material:Epoxy Resin-Typical',

'Die 3 Length1:0.00856',

'Die 3 Length2:0.00856',

'Die 3 Height:.00035',

'Die 3 Power:1',

'Die 3 Material:Si-Typical',

'Attach 3 Thickness:0.00005',

'Attach 3 Material:Epoxy Resin-Typical',

'Die 4 Length1:0.00856',

'Die 4 Length2:0.00856',

'Die 4 Height:.00035',

'Die 4 Power:1',

'Die 4 Material:Si-Typical',

'Attach 4 Thickness:0.00005',

'Attach 4 Material:Epoxy Resin-Typical',

'Die 5 Length1:0.00856',

'Die 5 Length2:0.00856',

'Die 5 Height:.00035',

'Die 5 Power:1',

'Die 5 Material:Si-Typical',

'Attach 5 Thickness:0.00005',

'Attach 5 Material:Epoxy Resin-Typical',

'Pad Length1:0.0119',

'Pad Length2:0.0119',

'Pad Thickness:0.0001',

'Pad Material:Si-Typical',

'Mold Material:Epoxy Resin-Typical',

'Wire Diameter:0.000025',

'Wire Material:Au-Typical'

]

oDesign.RunToolkit("SysLib", "Geometry/Packages/SDBGA", [])

oDesign.RunToolkit("SysLib", "Geometry/Packages/SDBGA", ["ng"])

oDesign.RunToolkit("SysLib", "Geometry/Packages/SDBGA", data)
