Data Center Components

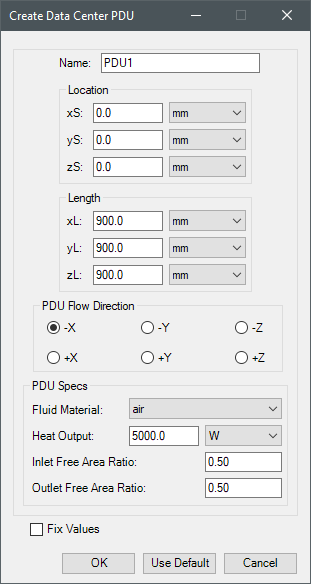

PDU enables you to create a fluid block, partitions, and vent geometry and boundary conditions to represent a power distribution unit.

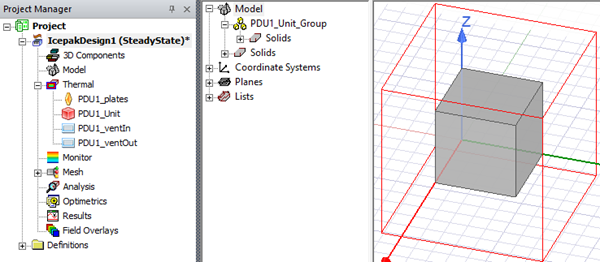

Name	The Name appears in the Project Manager window, history tree, and 3D Modeler window.
Location	Under Location, specify the x, y, and z start and length location to define the object's size.
PDU Flow Direction	PDU Flow Direction specifies the direction in which air flows.
PDU Specs	Under PDU Specs, specify the fluid material, heat output, and free area ratio of the inlet and outlet.

Iron Python Script – PDU.py:

The following is the toolkit's scripting information.

oDesign.RunToolkit("SysLib", "Geometry/Data Center Components/PDU",

["ng","Name:PDU1","length_unit:meter","power_unit:W","FluidMaterial:air",

"xS:0","yS:0","zS:0","xL:0.9","yL:0.9","zL:0.9","FlowDirection:-X",

"HeatOutput:5000","InletAreaRatio:0.5","OutletAreaRatio:0.5"])

scriptInput = ["ng"]

scriptInput.append("Name:PDU1")

scriptInput.append("length_unit:meter")

scriptInput.append("xS:0.0")

scriptInput.append("yS:0.0")

scriptInput.append("zS:0.0")

scriptInput.append("xL:0.9")

scriptInput.append("yL:0.9")

scriptInput.append("zL:0.9")

scriptInput.append("FlowDirection:+Y")

scriptInput.append("FluidMaterial:air")

scriptInput.append("HeatOutput:5000")

scriptInput.append("power_unit:W")

scriptInput.append("InletAreaRatio:0.50")

scriptInput.append("OutletAreaRatio:0.50")

oDesign.RunToolkit("SysLib", "Geometry/Data Center Components/PDU", [])

oDesign.RunToolkit("SysLib", "Geometry/Data Center Components/PDU", ["ng"])

oDesign.RunToolkit("SysLib", "Geometry/Data Center Components/PDU", scriptInput)
