Approximate 1/4 Cylinder with Polygonal Block

Approximate 1/4 Cylinder with Polygonal Block enables you to create geometry, assign a boundary condition, and create a mesh region for a one quarter or more of a cylinder object.

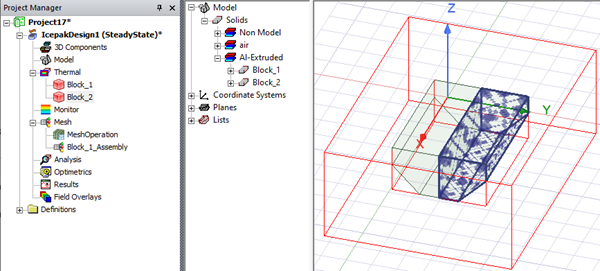

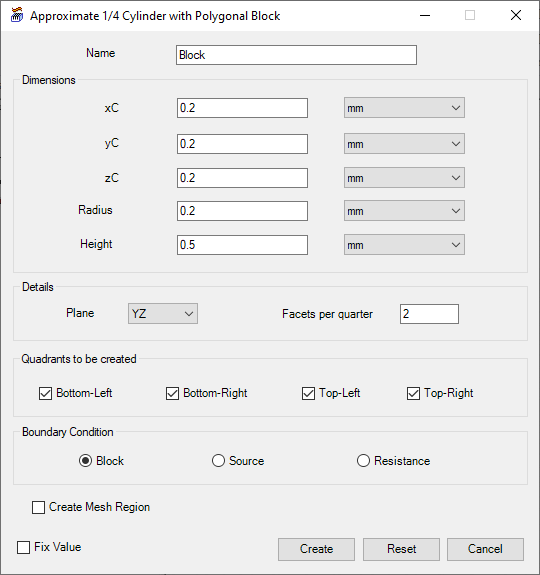

Name	The Name appears in the Project Manager window, history tree, and 3D Modeler window.
Dimensions	Under Dimensions, specify the xC, yC, zC lengths to define the object's location (geometric center). Specify the Radius and Height to define the object's size.
Details	Under Details, specify which Base Plane the object will exist on and how many Facets it will have.
Quadrants to be created	Under Quadrants to be created, select which quadrants of the cylinder you want to create.
Boundary Condition	Boundary Condition specifies which type of boundary condition is applied.
Create Mesh Region	Select Create Mesh Region to create a mesh region around the geometry.
