Heatsinks - AngledFinHS

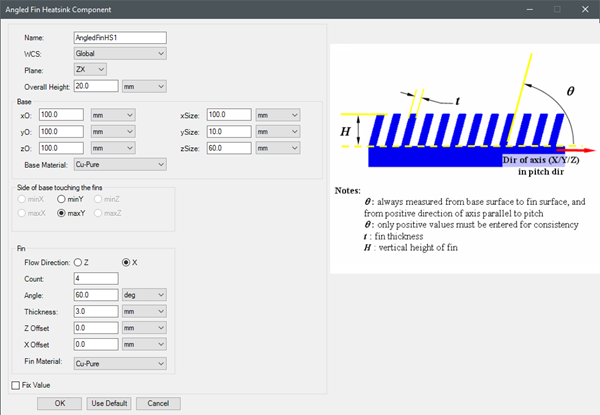

AngledFinHS enables you to create a heat sink with angled fins. The angle of inclination of the fins relative to the base can be specified.

Name	The Name appears in the Project Manager window, history tree, and 3D Modeler window.
WCS	WCS specifies the coordinate system on which to create the heatsink.
Plane	Plane specifies the plane on which to create the heatsink.
Overall Height	Overall Height specifies the cumulative height (base and fins) of the heatsink.
Base	Under Base, specify the x, y, and z start and length location to define the object's size. Also, specify the base material.
Side of base touching fins	Side of base touching fins specifies which face of the heatsink the fins touch.
Fin	Under Fin, specify the flow direction, the fin count, the fin angle, fin thickness, the offsets, and fin material.

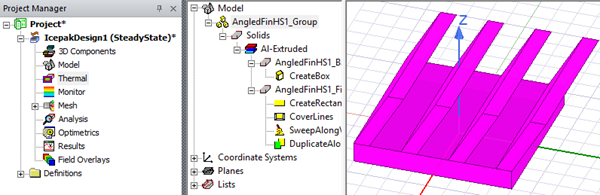

Iron Python Script – AngledFinHSpy:

The following is the toolkit's scripting information.

scriptInput = ["ng"]

scriptInput.append("Name:AngledHS1")

scriptInput.append("length_unit:meter")

scriptInput.append("angle_unit:deg")

scriptInput.append("Base_Material:Al-Extruded")

scriptInput.append("WCS:Global")

scriptInput.append("Plane:ZX")

scriptInput.append("Baseside:maxY")

scriptInput.append("Overall Height:0.02")

scriptInput.append("xOrigin:0.1")

scriptInput.append("yOrigin:0.1")

scriptInput.append("zOrigin:0.1")

scriptInput.append("Len2:0.015")

scriptInput.append("xSize:0.1")

scriptInput.append("ySize:0.01")

scriptInput.append("zSize:0.06")

scriptInput.append("Flow:X")

scriptInput.append("Count:4")

scriptInput.append("Angle:120")

scriptInput.append("Thickness:0.003")

scriptInput.append("Offset1:0.0")

scriptInput.append("Offset2:0.0")

oDesign.RunToolkit("SysLib", "Geometry/Heatsinks/AngledFinHS", [])

oDesign.RunToolkit("SysLib", "Geometry/Heatsinks/AngledFinHS", ["ng"])

oDesign.RunToolkit("SysLib", "Geometry/Heatsinks/AngledFinHS", scriptInput)
