CAD Integration Functionality

CAD Integration includes the following functionality:

• DX analysis
• WB Update Project
• WB Update All Design Points
• Parametric analysis with DSO
• Animation
• Geometry
• Field plots

Ansys Mechanical does not do implicit subtraction. Ansys Electromagnetics products can do explicit subtractions before sending geometry to Ansys using Modeler > Model Preparation > Perform Explicit Subtraction.

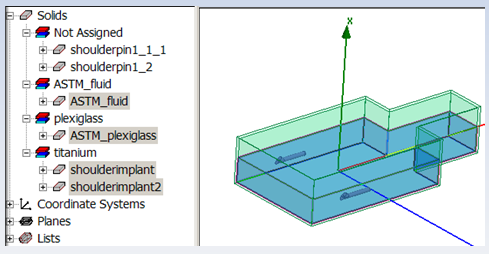

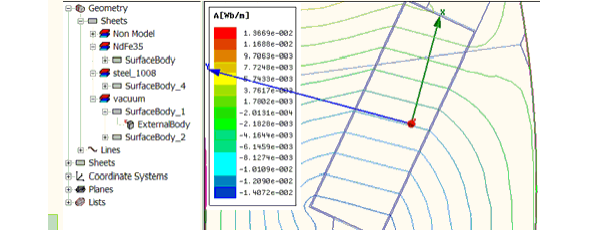

For example, consider the following model.

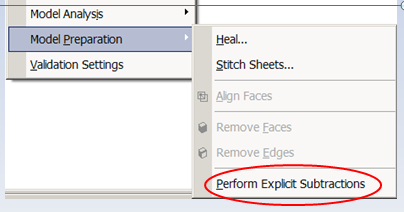

Perform Explicit Subtractions can be performed.

Results appear in the History tree, as shown:

The Messages window reports this action.
