Uniting Primitives in ECAD Xplorer

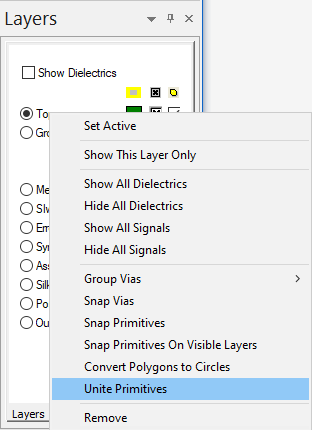

To create a union layer from two or more objects that overlap on the same layer, first, right-click the chosen layer or the space adjacent to the layer name, in the Layers window. Then select Unite Primitives.

The overlapping objects merge.
