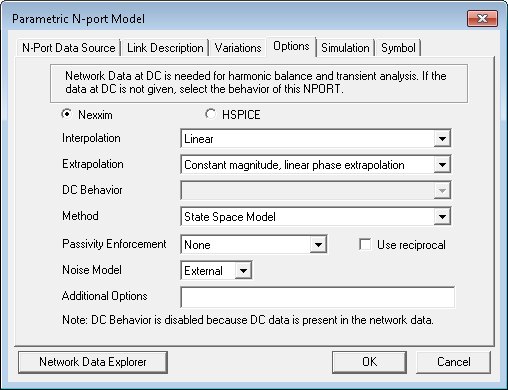

The Options tab is used to select the behavior of the selected NPort.
- Interpolation — Specifies the interpolation as Step or Linear
- Extrapolation – Specifies the type of extrapolation that is to be used with the NPort
- DC Behavior — Specifies the type of DC behavior that is to be used with the NPort
- Method – Specifies the method used to convert frequency domain data to the time domain
- Passivity Enforcement — Enforces a passivity check which tests whether the S-parameter data is passive or not. Passive devices can only dissipate, or temporarily store energy, but never generate it.
- Use reciprocal – Computes the inverse, or reciprocal, at each frequency so the N-port can be used for de-embedding. See Deembedding S-Matrices.
When the N-port behavior Options have been entered, click OK or select another tab.
