Editing the DC Coefficient Text File

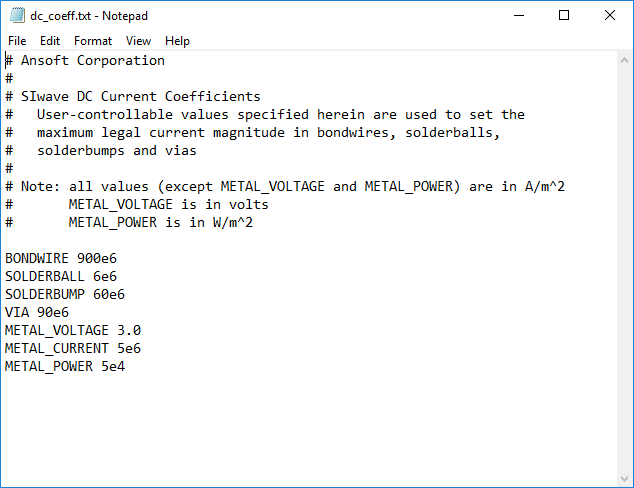

The DC Coefficient text file (dc_coeff.txt) is automatically installed in the <install_root>\vxxx\Win64 (or Linux64) directory (where xxx is the version number, such as v242 for 2024 R2).

In this file, set the threshold values for bondwires, solderballs, solderbumps, vias, metal voltage, metal current, and metal power.

All values must be positive.
