Network Data Explorer Display Format

The Display Format window affords additional control over the display of values in Network Data Explorer.On the NDE ribbon, click the Display Format icon.

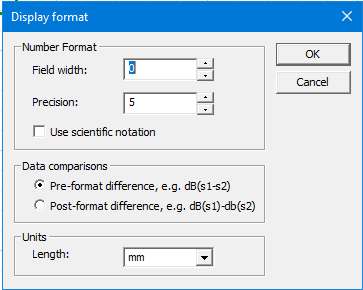

The Display Format window appears.

The Number Format options allow you to specify Field Width (the minimum number of characters used to display a number) and Precision (the number of decimals to display). You can also check the Use scientific notation check box, if desired.

The Data comparisons options allow you to choose Post-format difference or Pre-format difference.

• Pre-format difference- when comparing data sets, subtract values before applying the formatting function (e.g. dB, magnitude); the values displayed will be the magnitude, dB, etc., of the complex difference.
• Post-format difference – when comparing data sets, subtract values after applying the formatting function (e.g. dB, magnitude); the values displayed will be the difference between the magnitude, dB, and so on.

The Units option allows you to specify the Length unit (the unit used to display and interpret length values). The default is mm.
