Multiple Frequency Statistics

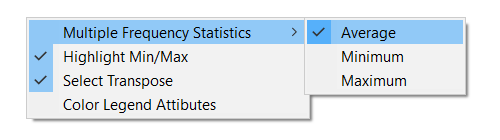

The Multiple Frequency Statistics menu option determines the statistical composite to display when multiple frequencies have been selected for the matrix display. The statistical data is always the first matrix displayed, followed by matrices for each individual frequency. The Multiple Frequency Statistics option also indicates the data used in the colored matrix plot when multiple frequencies have been selected.

This right click menu option appears in the Matrix plot, regardless of whether you are in Table or Plot view.

The menu options are:

• Average – display the average of the matrix values across selected frequencies.
• Minimum – display the minimum matrix values across selected frequencies.
• Maximum – display the maximum matrix values across selected frequencies.

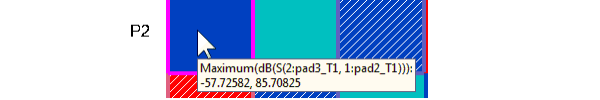

The selected information also appears in a tool-tip when you hover the cursor over a cell.
