Displaying Individual Statistics for All Frequencies

  1. On the NDE ribbon:
    1. Click Sweep.
    2. Click Table.
    3. Click Show Statistics.
  2. In the Cell and Frequency Selection pane, select statistics to display. The information displays in a table in the Data View pane.

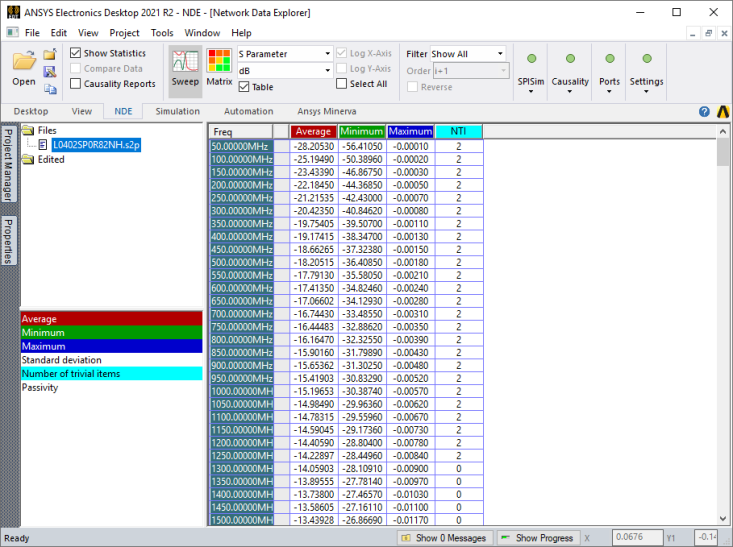

ndExplorer - Displaying Stats

Selected statistics are displayed for all frequencies.

Passivity is only available for S-parameters (comparisons inactive).

For S-parameters, the Number of Trivial Items (NTI) includes all values of 0 and 1. For other data and data comparisons, only values of 0 are counted as trivial.
