Creating a Statistics Plot

Network Data Explorer can display a graph of selected statistical measures across all frequencies.

  1. On the NDE ribbon:
    1. Click Sweep.
    2. Click Show Statistics.
  2. In the Cell and Frequency Selection pane, select statistics to display. The selected statistics are plotted.

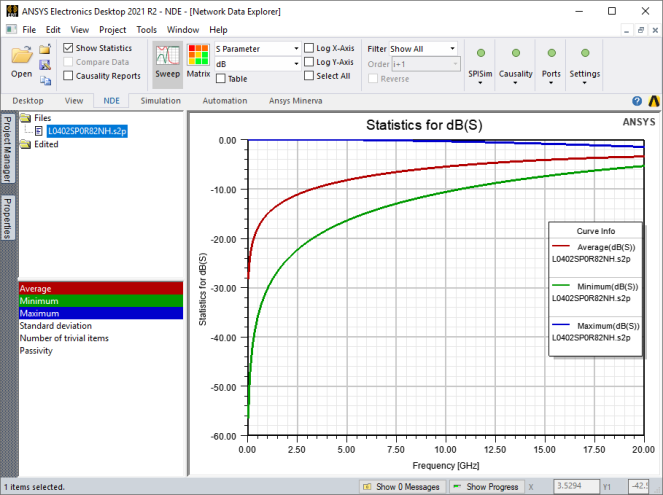

ndExplorer - Plotted Statistics

Hover the cursor over a statistic to view more information about it.

Passivity is only available for S-parameters (comparisons inactive).

For S-parameters, the Number of Trivial Items (NTI) includes all values of 0 and 1. For other data and data comparisons, only values of 0 are counted as trivial.
