Interface Changes for Stress Feedback from Ansys Mechanical to HFSS
When used through the Workbench for stress feedback projects, the HFSS interface contains some commands and information that do not appear in standalone HFSS.
Solution Profile information for Solve with Displacement Feedback
Plot Fields Menu with Displacement and Mag_Displacement
Deformation Scale tab for Modify Plot Attributes
Revert to Zero Displacement command under the Solve Setup menus
Fields Calculator Field Quantities for Stress Feedback Projects
Plot Fields Context Menu for Stress Feedback Projects
Modify Plot Attributes Dialog for Stress Feedback Projects

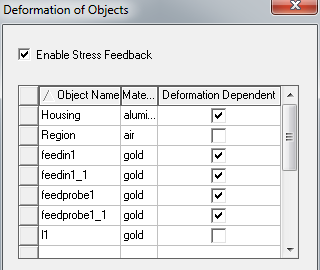

When working with HFSS through Ansys Workbench, the HFSS menu for Driven and Eigenmode projects includes a Deformation of Objects command that opens this dialog for specifying which objects shall be deformation dependent.
The Enable Stress Feedback check box enables object selection. All selections are disabled when this is unchecked. Changing the setting invalidates any existing solutions.
The objects listed do not include objects without materials assigned, non-model objects, or non-3D objects. Objects assigned materials such as air or vacuum are not deformed and don't apply to stress feedback.
Solution Profile with Displacement Feedback
The Solution Profile includes a report of Solve with thermal/displacement feedback, including information Maximum Delta T and Maximum Delta Displacement.

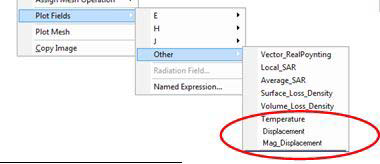

Plot Fields Menu with Displacement and Mag_Displacement
The Plot Fields menu includes entries for displacement
and mag_displacement.

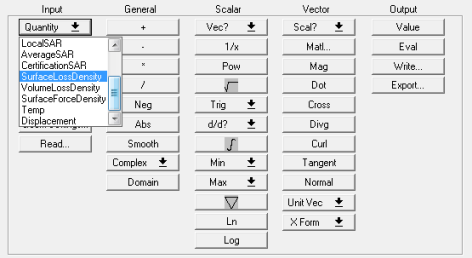

Fields Calculator Field Quantities for Stress Feedback Projects
The Quantity menu for the Fields Calculator lists Displacement for Stress Feedback projects.

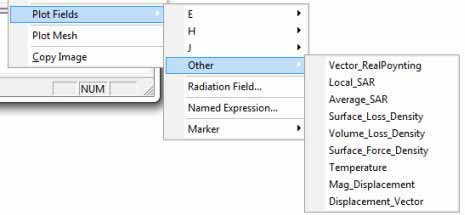

Plot Fields Context Menu for Stress Feedback Projects
The Plot Fields>Other menu includes Displacement_vector and Mag_Displacement, a scalar. A field plot remains empty until the displacement data applies to the HFSS solution.

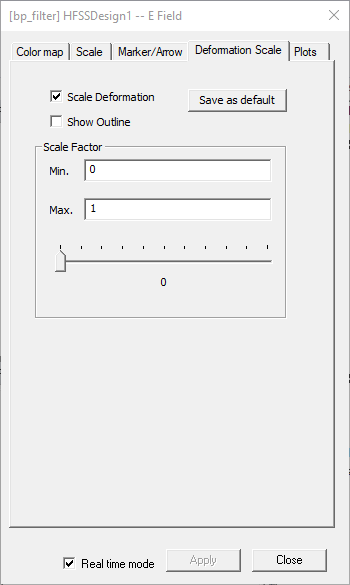

Modify Plot Attributes Dialog for Stress Feedback Projects
When an HFSS plot includes deformation, the HFSS>Fields>Modify Plot Attributes dialog includes a tab for scaling the deformation. If you check Scale Deformation, you can also select Show Outline.
