Feedback Iterator GUI Operations

The Single Iteration Update action allows you to run a single iteration worth of updates, as follows:

  1. Updates the Electromagnetics product system, which will incorporate any previous feedback from the downstream system.
  2. Updates the downstream system.
  3. All coupled systems (Electromagnetics product, Electromagnetics product Downstream, and Iterator) are in the UpToDate state.
  4. Iterator's “Iterations Completed” property increments by 1.

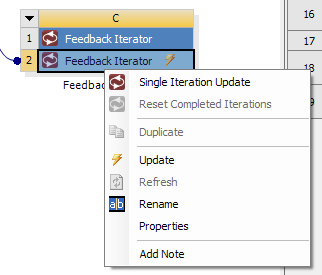

Feedback Iterator right-click menu.

Right-clicking the Feedback Iterator component and selecting Update allows you to run iterations automatically. Iterations continue to run either until convergence criteria are met, or until the Max Iterations value is reached.
