Reporter Options: Report Setup Options

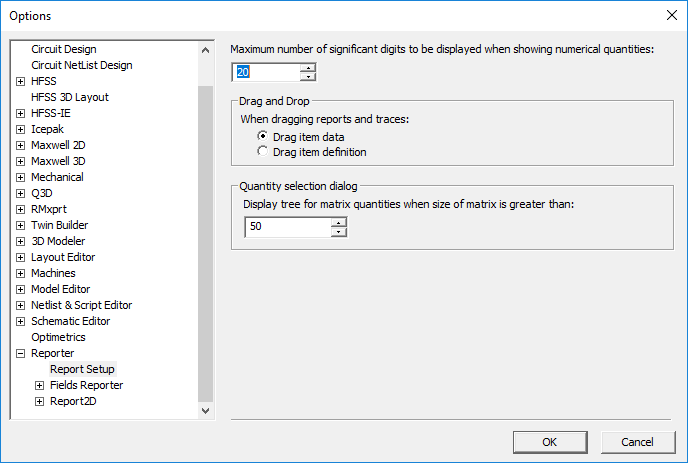

Under Reporter Options, Report Setup options allow you to customize significant digits, drag-and-drop, and quantity selection options for reports.

Set the Maximum number of significant digits to be displayed when showing numerical quantities. The value must be between 0 and 20.

In the Drag and Drop area, select how Electronics Desktop behaves when you drag reports and traces. You can either Drag item data or Drag item definition.

In the Quantity Selection Dialog area, select a Display tree for matrix quantities when size of matrix is greater than value. When the number of matrix elements is larger than the selected number, the Quantities field uses a tree structure to divide matrix quantities into groups by their first element name. The initial display shows groups, without initially listing group members. This is useful when dealing with large matrices.
