Cloning Datasets

Cloning a dataset creates an identical copy of an existing dataset. The clone can then be modified as necessary.

To clone a dataset:

1. Access the Datasets window:
   • For project-level datasets, click Project > Datasets.
   • For design-level datasets, click HFSS > Design Datasets.

   The Datasets window appears, listing any project or design-level datasets.



2. Click Clone.

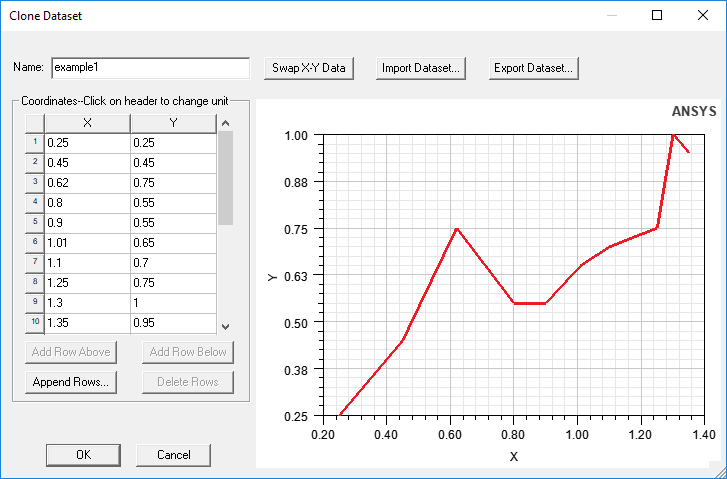

   The Clone Dataset window appears. The default name is the original dataset name with a number appended to the end.



3. Change the Name and X/Y coordinates as desired.
4. When you are finished, click OK to exit the Clone Dataset window.

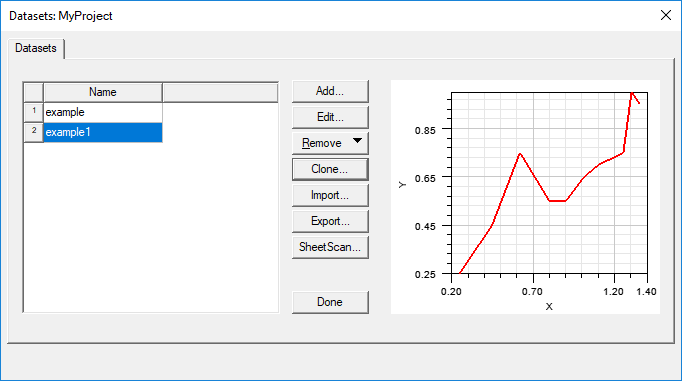

   The cloned dataset appears in the list.



5. Click Done to exit the Datasets window.
