Modifying Scalar Field Plot Shading

1. Click HFSS> Fields> Modify Plot Attributes.

   The Select Plot Folder window appears.

2. Select the plot folder you want to modify, and then click OK.

   All plots in the selected folder will be modified.

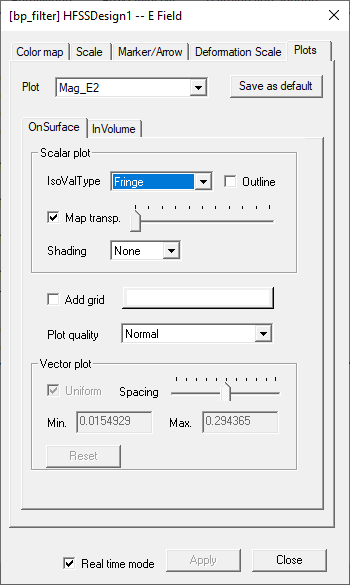

   A dialog box with attribute settings for the selected folder appears.

3. Click the Plots tab.



4. If the plot is a scalar surface plot, do the following:
   1. Select one of the following from the Shading drop-down menu:




      None	Equivalent to selecting Do not use lighting on the Lighting Properties dialog box.
      Flat	Provides a flat rendering of the field plot.
      Smooth	Provides a smooth rendering of the field plot.



5. Select Real time mode if you want the changes to take effect immediately in the view window.

   If this option is cleared, click Apply when you want to see the changes.

6. Click Close to dismiss the window.
