Adding Trace Characteristics to your Favorites

You can add trace characteristics to your list of favorites.

To add characteristics to your list of favorites:

1. Select a trace in a report plot or legend.
2. Click Report2D> Trace Characteristics or right-click the selected trace to display the short cut menu.
3. Select All.

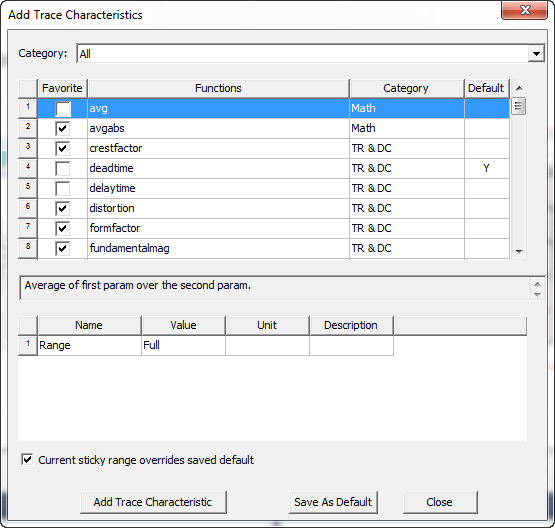

   The Add Trace Characteristics dialog box displays.



4. Click the Favorite check box in front of any function you want to add to your Favorites. You can define as many favorites as you need, but no more than 10 are displayed in the menu, and they are displayed in alphabetical order.
5. Click Close. You can view the current favorites by selecting Favorites in the Category drop-down menu.
   Note:

   You can remove favorites by clearing the Favorite check box for one or more functions, and clicking Close.
