Text Entry for Calc. Range or Edit Calculation Range Dialog

In the Setup Optimization dialog box, you can enter the Calc. Range Sweep Min/Max by directly editing the Calc. Range field or by accessing an Edit Calculation Range dialog box.

The edit field accepts the following forms of text:

• sweep that allows your to select different discrete values:

  discrete values, for example, F(10GHz, 11GHz)

  min/max range, for example, F([10GHz, 11GHz])

• editable sweep, which allows you to customize values (that is a sweep that has an enabled "edited" radio button in sweep selection dialog):

  The min/max is used on top of selected values. For example, if you use the sweep dialog and choose "0 deg, 60 deg, 180 deg, 240 deg", then [60deg, 240deg] will select values "60 deg, 180 deg, 240 deg".

• sweep that uses a full range:

  all values, for example, Time(All)

  min/max range, for example, Time([1ms, 2ms]) HFSS/MAXWELL/TWINBUILDER

• You solve 1 to 20 GHz step .1 and specify F[10.381GHz, 11.381GHz], it is equivalent to selecting values between 10.4GHz and 11.3GHz.
• You can specify multiple sweep values by separating those with comma ","

  For example, F(1GHz), cap(1pf, 1.2pf)

  For example, Distance(All), Freq([1ghz,2ghz]), Phase(0 deg)

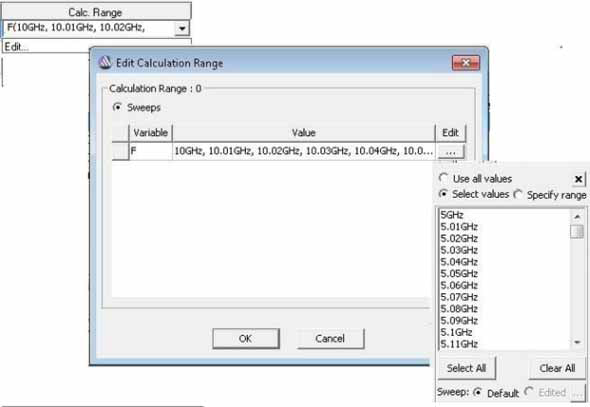

If you click Edit.. on the menu, you see the Edit Calculation Range dialog box. Click on the ellipsis [...] button to select radio buttons for Use all values, Select Values or Specify range.

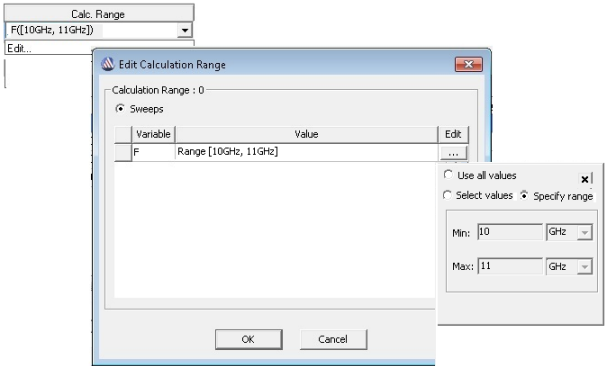

This example shows that when you specify a range, how the range appears in the Calc. Range field.

You could also enter the range directly in the Cal. Range field.
