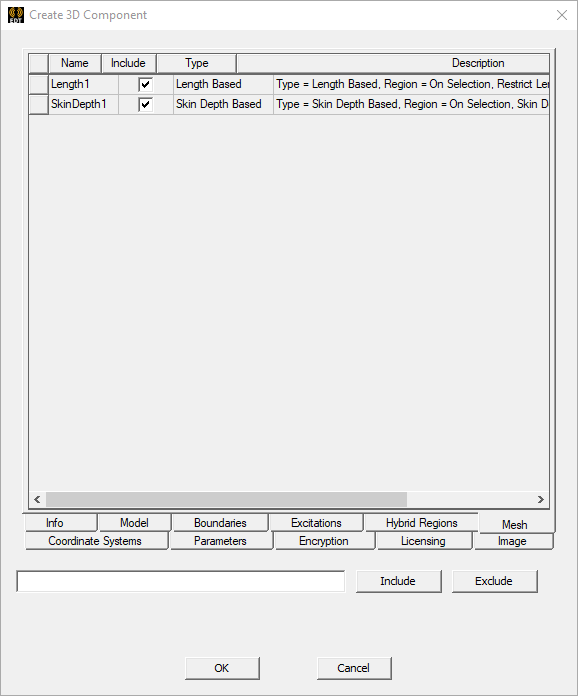

Create 3D Component Mesh Tab

The list is populated with all the mesh operations on selected objects.

• Use the Include check box to include mesh operations in the 3D component (selected), or to Exclude them from the component (cleared).

  Alternatively, you can type a mesh operation Name into the text box and click the Include or Exclude button. Wildcards (? and *) are supported when you use this method, so you can change the inclusion state of multiple mesh operations with similar names in a single operation.

• Type and Description columns are read only.
