Create 3D Component Image Tab

The Image tab shows the preview image for the component, based on the reference Coordinate System. The image also responds when you Include or Exclude objects from the Model tab.

You can right-click for a shortcut menu to change the view of the preview image.
Changing the preview orientation does not affect the modeler window view.

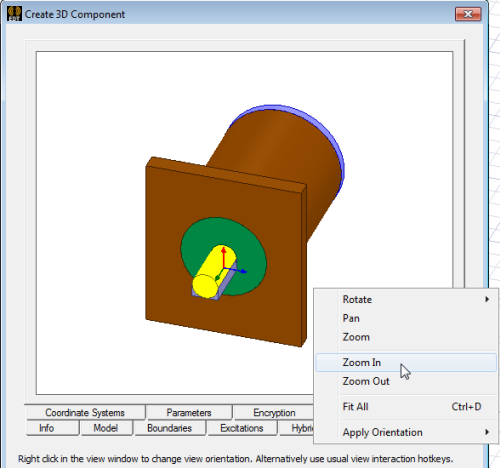

Create 3D Component dialog. Image tab displaying model and right-click menu. Zoom in highlighted.

If you use the Encryption tab and Model tab settings to hide/show the model or specified model objects, the Image tab responds. You must use encryption to enable the Hide check boxes on the Model tab.

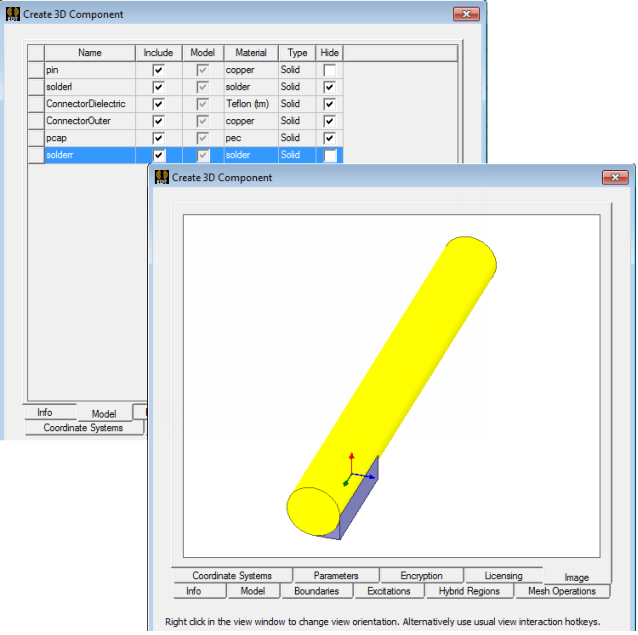

Create 3D Component dialog, Hide option enabled. Image tab displaying model.

If you use the Encryption tab to display only an object outline, the Image tab responds.

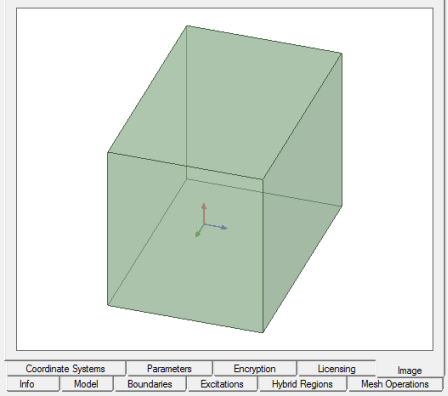

Create 3D Component dialog. Image tab displaying model outline.
