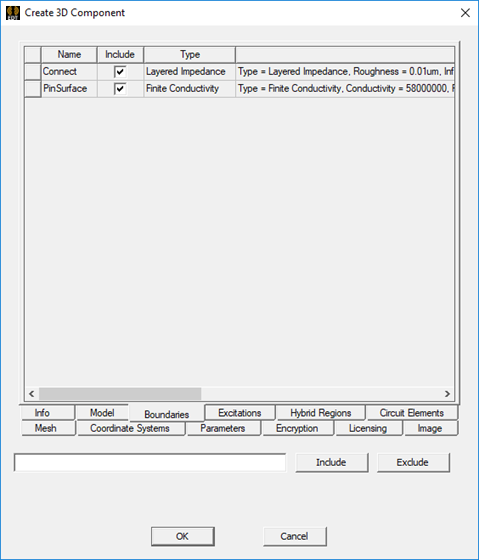

Create 3D Component Boundaries Tab

The list is populated with all the boundaries on selected objects.

• Use the Include check boxes to include (selected) or exclude (cleared) individual boundaries for the 3D component.

  Alternatively, you can type a boundary Name into the text box and click the Include or Exclude button. Wildcards (? and *) are supported when you use this method, so you can change the inclusion state of multiple boundaries with similar names in a single operation.

• The Type and Description columns are read only.
