Johanson: 3D Components

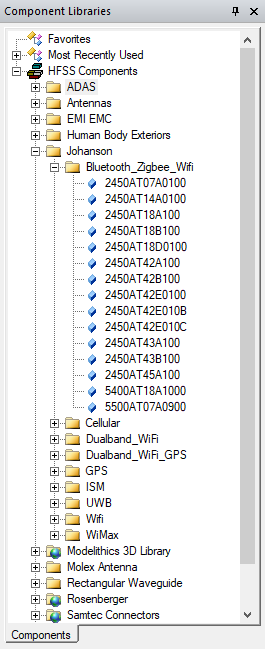

There are two ways to view the Johanson components in the 3D Component Library. If you have enabled View > Component Libraries, you can navigate to the different models in the tree. You can drag and drop models from the Component Libraries tree to the Modeler window.

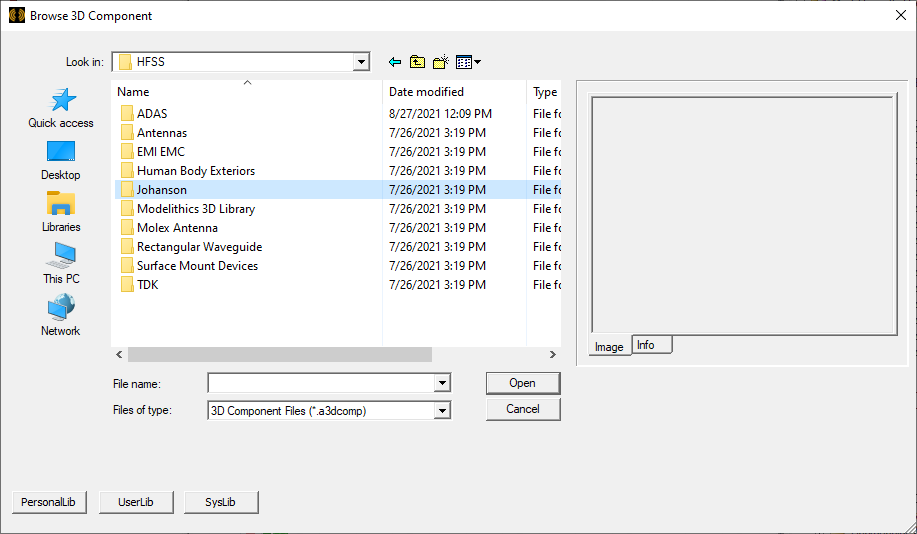

You can also access the Johanson library using Draw > 3D Component Library > Browse... to open the Browse 3D Component dialog. You then click SysLib to display the libraries included in your installation. You can select from the Johanson models, and navigate the folders to select from available components.

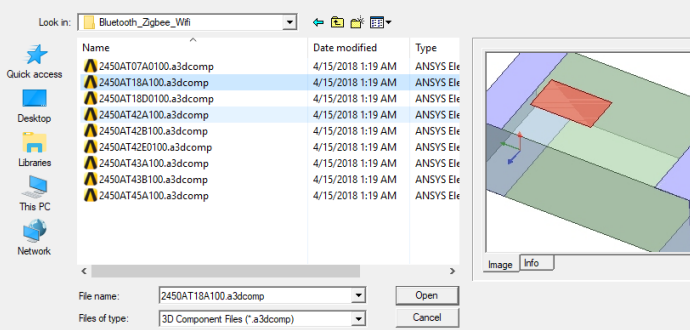

Once you have selected a Component file, you can view the Image and Info for that component.

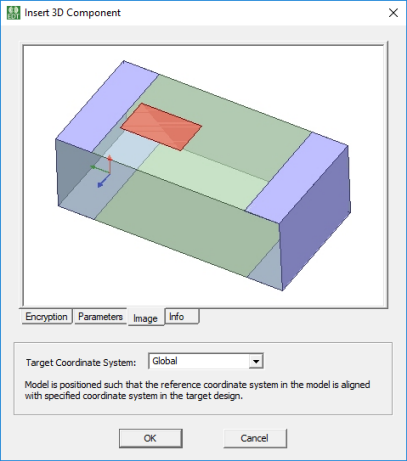

You can click Open to display the Insert 3D Component dialog box. You can view the Image and Info tabs for that component.

You can also open the Insert 3D Component dialog by double-clicking on a model in the Component Libraries window. See Inserting a Component into a Design.
