Post-Processing Large Scale DSO Dataset Solutions

In Ansys Electronics Desktop, the Import Large Scale DSO Solution command allows you to post-process Large Scale DSO dataset solutions.

Importing a Large Scale DSO Solution

To import a Large Scale DSO solution:

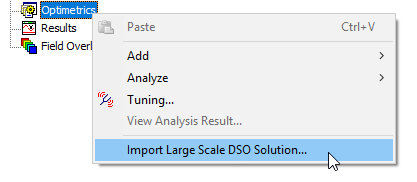

1. In the Project Manager, right-click Optimetrics and select Import Large Scale DSO Solution.



   Note:

   You can also access this window by right-clicking Results > Dataset Solutions.

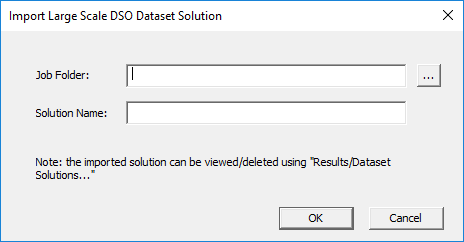

   The Import Large Scale DSO Dataset Solution window appears.



2. Click the ellipsis button (...) and browse to select a job folder. To select a results dataset, double-click the results folder name. Results folders are organized by the scheduler prefix (for example, RSM) and job number.
3. Click Open to return to the Import Large Scale DSO Solution window.
4. Review the Job Folder path and Solution Name, then click OK.

   The dataset is imported.

Viewing Imported Solutions

To view a list of imported datasets:

1. In the Project Tree, right-click Results and select Dataset Solutions...

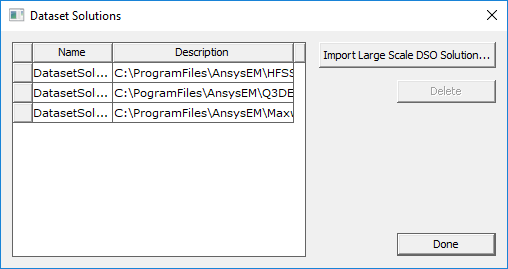

   The Dataset Solutions window appears.



   Selecting a dataset enables the Delete button, which you can click to remove it.

2. Click Done to close the window.

Creating a Dataset Report

After importing one or more DSO solutions, you can create a dataset report.

To do so:

1. In the Project Tree, right-click Results. Select Create Dataset Report > [Report Type].

   The Report window for the report type opens. See: Creating Reports.

Cloning a Dataset Solution

If you reopen a project that was solved using Large Scale DSO, you can quickly clone the solution report:

1. In the Project Tree, under Results, right-click the report and select Clone from Dataset Solution > [Solution Name].

   The cloned solution appears. You can now reuse the existing report definition rather than creating a new report.
