Specifying the Frequency Points to Solve

You can specify the following types of frequency points to solve within a frequency sweep:

Linear Step	A linear range of frequency points in which you specify a constant step size.
Linear Count	A linear range of frequency points in which you specify the number, or count, of points within the frequency range.
LogScale	A logarithmic range of frequency points in which you specify a frequency range and a samples number.
Single Points	Individual frequency points. For Discrete sweeps.

Select the type of frequency point entry from the Type dropdown menu.

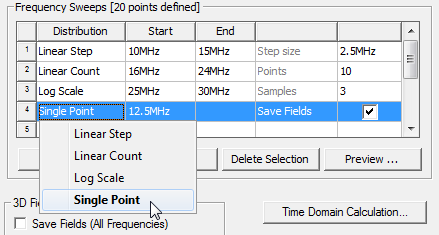

Frequency Sweeps groupbox. Distribution Options listed.

Edit Frequency Sweeps window contains a Time Domain Calculation tool that you can use to help calculate frequency step sizes and maximum frequencies, particularly if you intend to perform Full-Wave Spice analysis. For Discrete sweeps, HFSS always solves the frequencies from highest to lowest.
