5G Wizard: Cumulative Distribution Function

The next section of the 5G Wizard lets you specify Cumulative Distribution Function (CDF) settings. Output is for nominal design variation; reports will update if design variables are changed. Also, you can modify reports by selecting Modify Report and editing the Families tab to select additional variations.

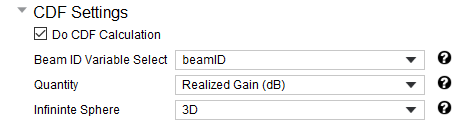

CDF Settings expanded.

Checking Do CDF Calculation causes the parameters to display.

Beam ID Variable Select

This lets you select the post processing variable that controls beam configuration.

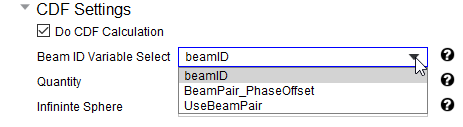

Beam ID Variable Select drop-down menu expanded, BeanID option selected.

Quantity

This lets you specify the Quantity to evaluate. Gain function evaluates CDF over each case. With each case, the CDF is plotted showing a distribution of gain values.

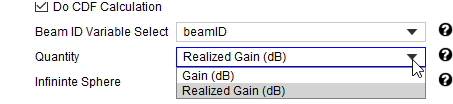

Quantity drop-down menu expanded, Realized Gain (dB) option highlighted.
