Progress Window

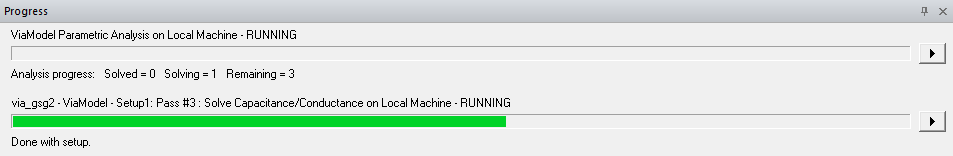

The Progress window monitors a simulation while it is running. Each simulation has its own progress bar. Right-clicking the bar allows you to abort the simulation or view simulation details.

To display or hide the Progress window, do one of the following :

• Click Show Progress or Hide Progress on the status bar:


• Click View > Progress Window.

• Right-click the history tree, and then click Progress on the shortcut menu.

A check box appears next to this command if the Progress window is visible.

When more than one progress bar is active, the top progress bar is represented on the status bar with a progress indicator.

The progress window is also dockable, so you can reposition it.
