ESD IEC 6100000-4-2 VCP (HFSS Transient) Example

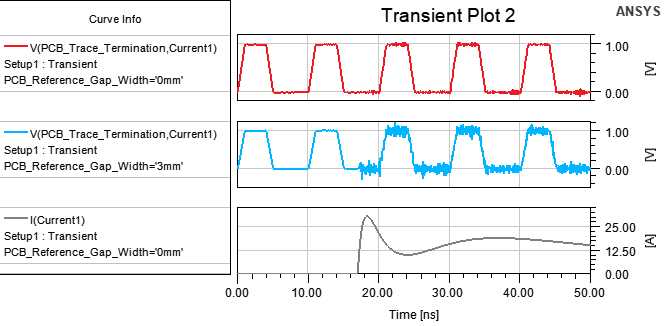

Description - This example shows how a 100MHz clock transmitted by a microstrip inside the jar is affected by the ESD. The variable "PCB_Reference_Gap_Width" controls the width of a gap in the reference plane under the microstrip. When the variable is 0mm (no gap) the induced noise on the clock signal is smaller when compared to a gap of 3mm. The setup includes a parametric sweep of the PCB reference gap width.

The project also includes reports.
