ESD Enclosure with Slot (HFSS Transient) Example

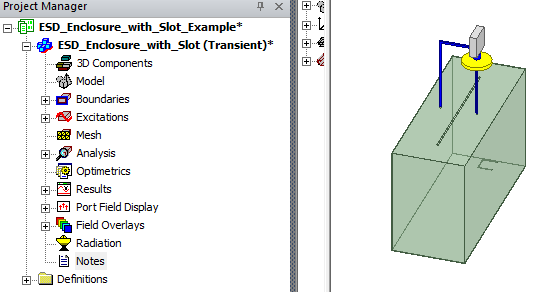

Description - This project shows the design of a ESD gun and the voltage induced in a loop inside of an enclosure with a slot. Model and measurements based on the following paper: F. Centola, D. Pommerenke, Wang Kai, T. Van Doren and S. Caniggia, "ESD excitation model for susceptibility study," 2003 IEEE Symposium on Electromagnetic Compatibility. Symposium Record (Cat. No.03CH37446), Boston, MA, USA, 2003, pp. 58-63 vol.1.doi: 10.1109/ISEMC.2003.1236564

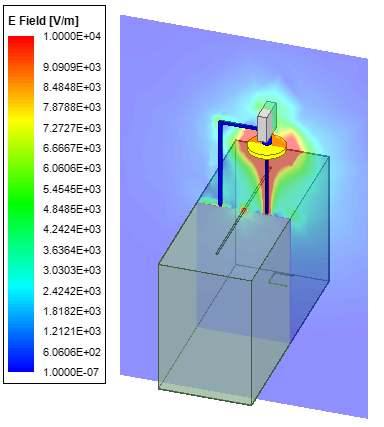

Running the simulation produces the following field plot.

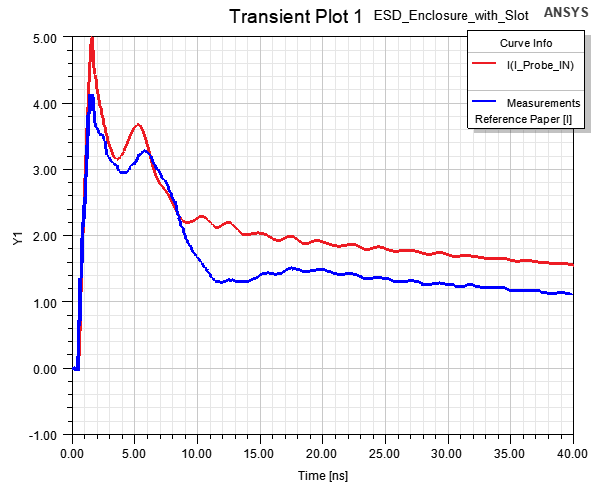

The project also includes reports.
