EMP Electromagnetic Pulse (HFSS Transient) Example

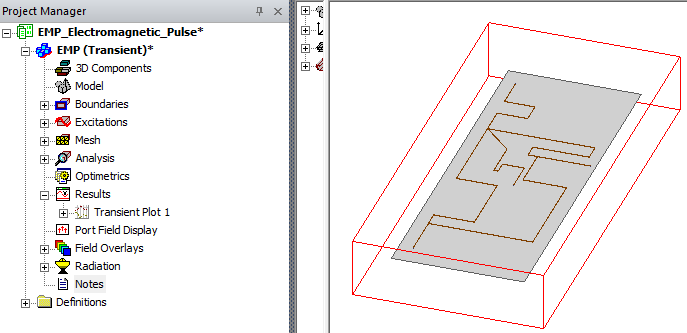

Description - This project is based on information from the following paper: Petrache, E.  et al  "An experimental test for the validation of time domain codes for the analysis of transient field coupling to transmission line networks." It calculates the induced voltage on resistors connecting a conductor representing cables on a vehicle to a ground plane due to an electromagnetic pulse

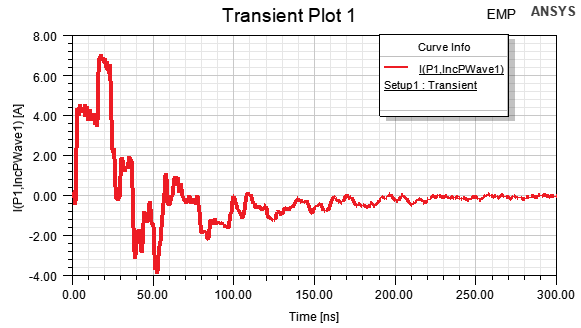

Running the simulation produces the following plot.
