CISPR25 Radiated Emissions Example

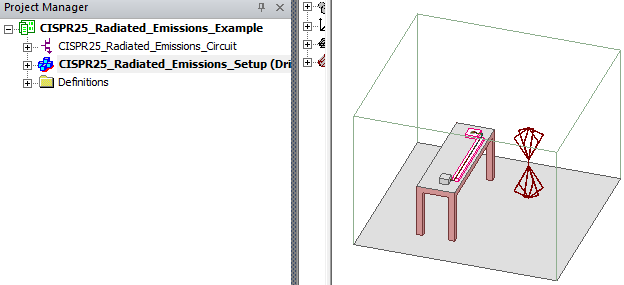

Description -This project shows how to simulate the radiated emissions from a dummy PCB according to CISPR25:2008

The CISPR25:2008 test bench model can be edited to manually change the number of cables according to the EUT

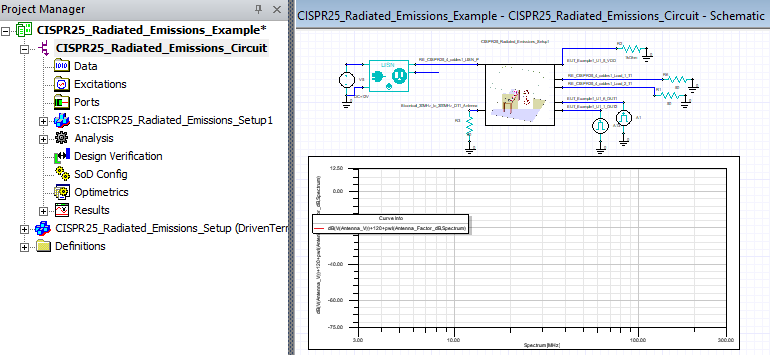

An antenna factor is applied in the circuit schematic to calculate the radiated emissions. The circuit schematic is included.
