Action Messages

Messages displayed in the Message Manager can be associated with actions that can be invoked in order to address a condition you are alerted to by the message. If a message has an associated action, a magnifying-glass icon will be present to the left of the message icon. When the cursor moves over a message with an action, the cursor changes to a hand.

You can invoke a message action by clicking the magnifying glass icon, by double-clicking the message, or by right-clicking the message and selecting Go To Reference from the pop-up menu.

One example of a message-associated action is the selection of an associated object:

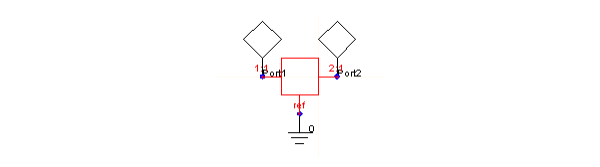

Circuit Schematic with two ports.

Another example is the opening of a related window:

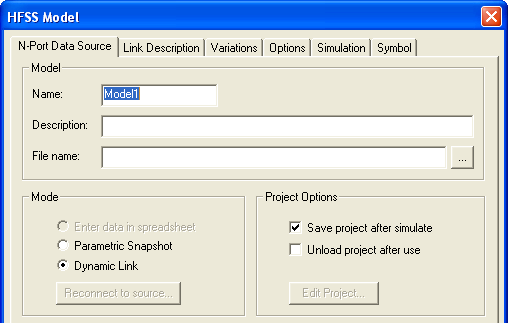

HFSS Model window open to the N-Port Data Source Tab. Boces to enter Model name, Description, and File Name.
