Post Processing for Transient in Layout

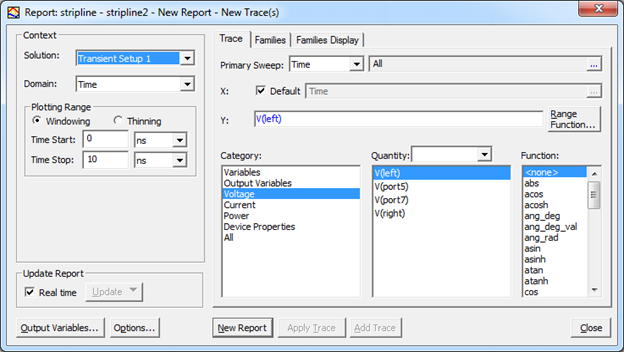

Transient results include voltage, currents, and power quantities in the Time domain and the Spectral domain. In the Time domain, the user can set a range to plot a window of the data or thin the data displayed in the plot.

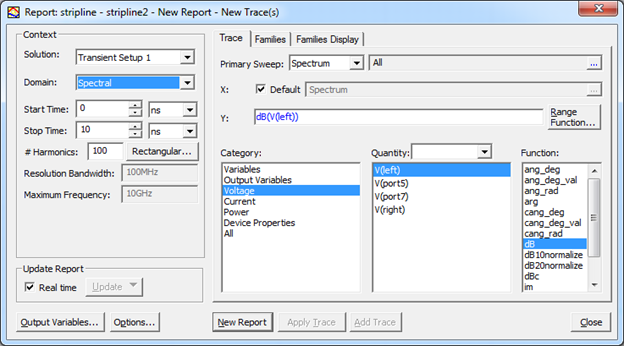

In the spectral domain, set the Start/Stop time and the number of harmonics, then plot spectral plots using the voltage, time, and power quantities.

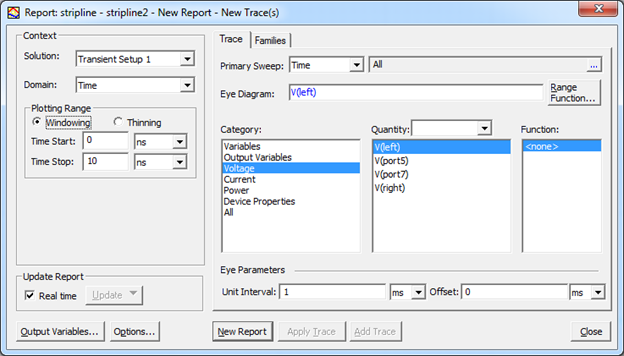

You can also plot eye diagrams in Time domain.

You can also use the post-processing window to reorder ports, set differential pairs, and port excitations for Interface Ports.

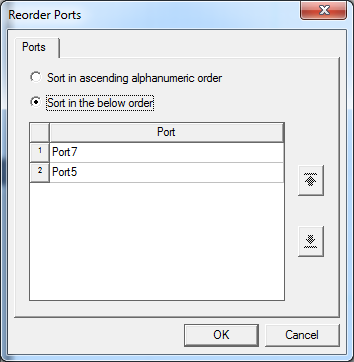

Reorder Nexxim Interface Ports

The user choose to reorder the ports in alphanumeric order or in any custom order of their choice. This order is used to reorder the results matrix and is displayed on the matrix data page, by the Network Data Explorer, and in the Reporter window.

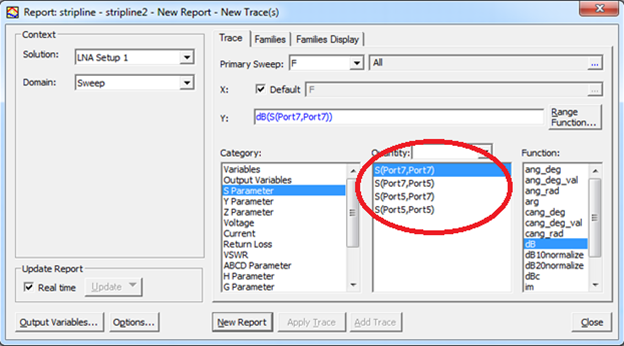

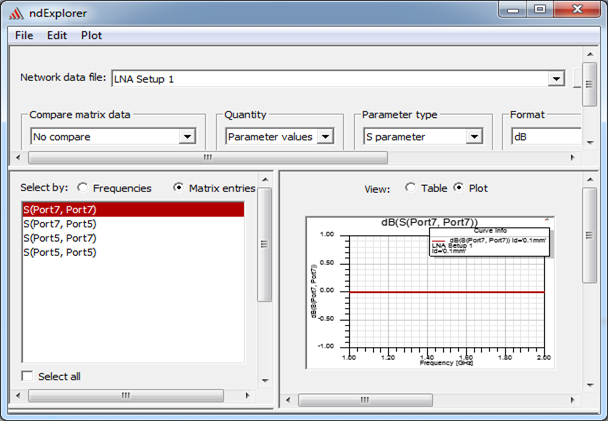

Here is the order as it is displayed in the Reporter and the Network Data Explorer.

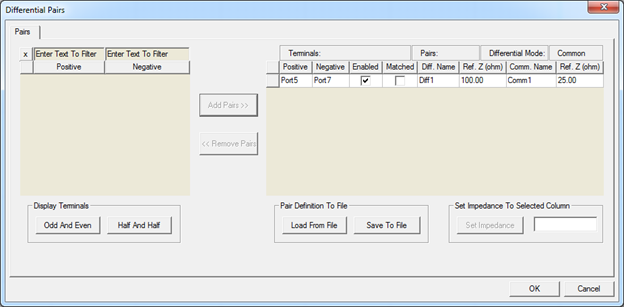

Differential Pairs window

You can set differential pairs for the Interface Ports through the Differential Pairs window. The values can then be accessed in the Reporter window.

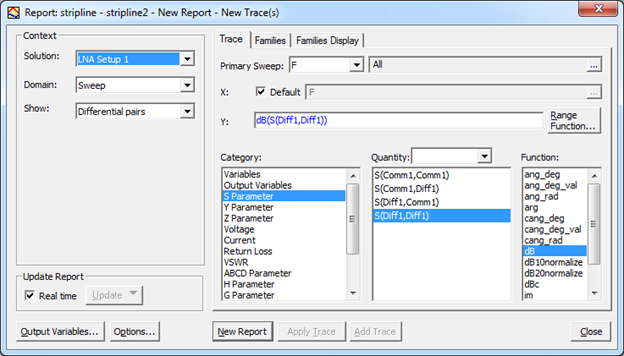

Here is the Reporter window with the differential quantities.

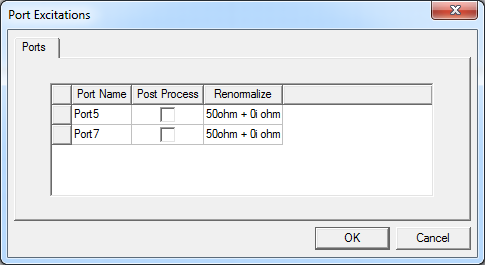

Port Excitations window

You can set the renormalization impedance for the Interface Ports using the Port Excitations window.
