Handling a Large Number of 2D or Circuit Ports

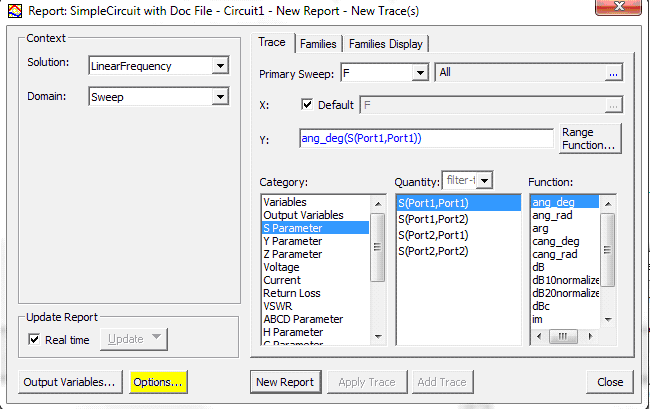

Report Window, Options button highlighted.

The tree view is only displayed when the following environment variables are configured.

ANSYS_ENABLE_LARGE_PORTS = 1

Required for Matrix parameters to display in tree view when the number of ports > 10.

ANSYS_DISABLE_TREE_LIMIT = 1

Required for Matrix parameters to display in tree view when the number of ports <= 10.
